No.
|
Standard measurement point
|
Hole shape
|
Size mm
|
1
|
Centre of skid plate mounting hole
|
Round
|
9
|
2
|
Centre of cab body No.1 mounting hole
|
Round
|
30
|
3
|
Centre of front shock absorber mounting hole
|
Round
|
70
|
4
|
Centre of engine mounting hole
|
Round
|
30
|

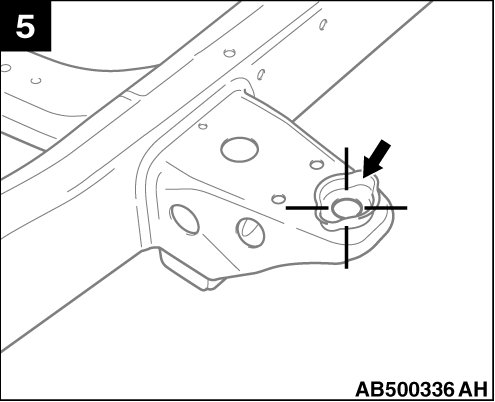

5
|
Centre of cab body No.2 mounting hole
|
Round
|
30
|

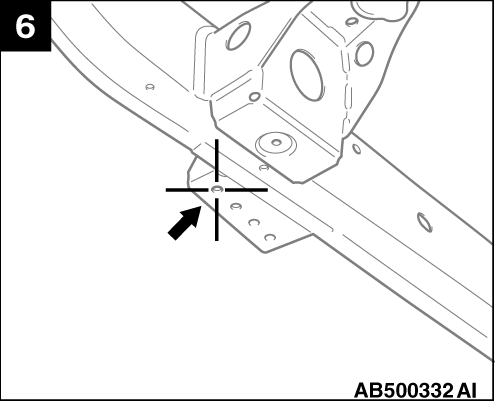

6
|
Centre of No.2 crossmember mounting hole
|
Round
|
15
|
7
|
Centre of cab body No.3 mounting hole
|
Round
|
36
|

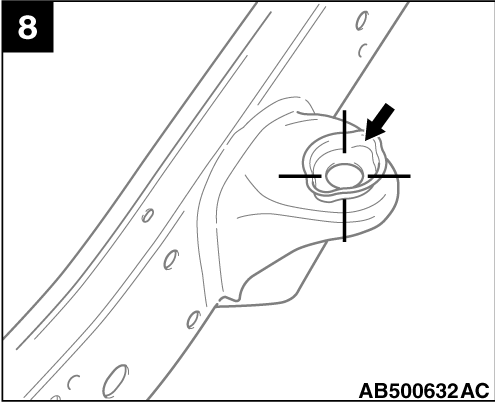

8
|
Centre of cab body No.4 mounting hole
|
Round
|
30
|
9
|
Centre of rear body mounting hole
|
Round
|
14
|
10
|
Centre of rear body mounting hole
|
Round
|
12
|
11
|
Centre of No.5 crossmember water draining hole
|
Round
|
6
|
12
|
Centre of rear body mounting hole
|
Round
|
13
|
13
|
Centre of rear body mounting hole
|
Oblong
|
20×13
|
14
|
Centre of rear body mounting hole
|
Oblong
|
20×13
|
