REAR PILLAR INNER <DOUBLE CAB>

note

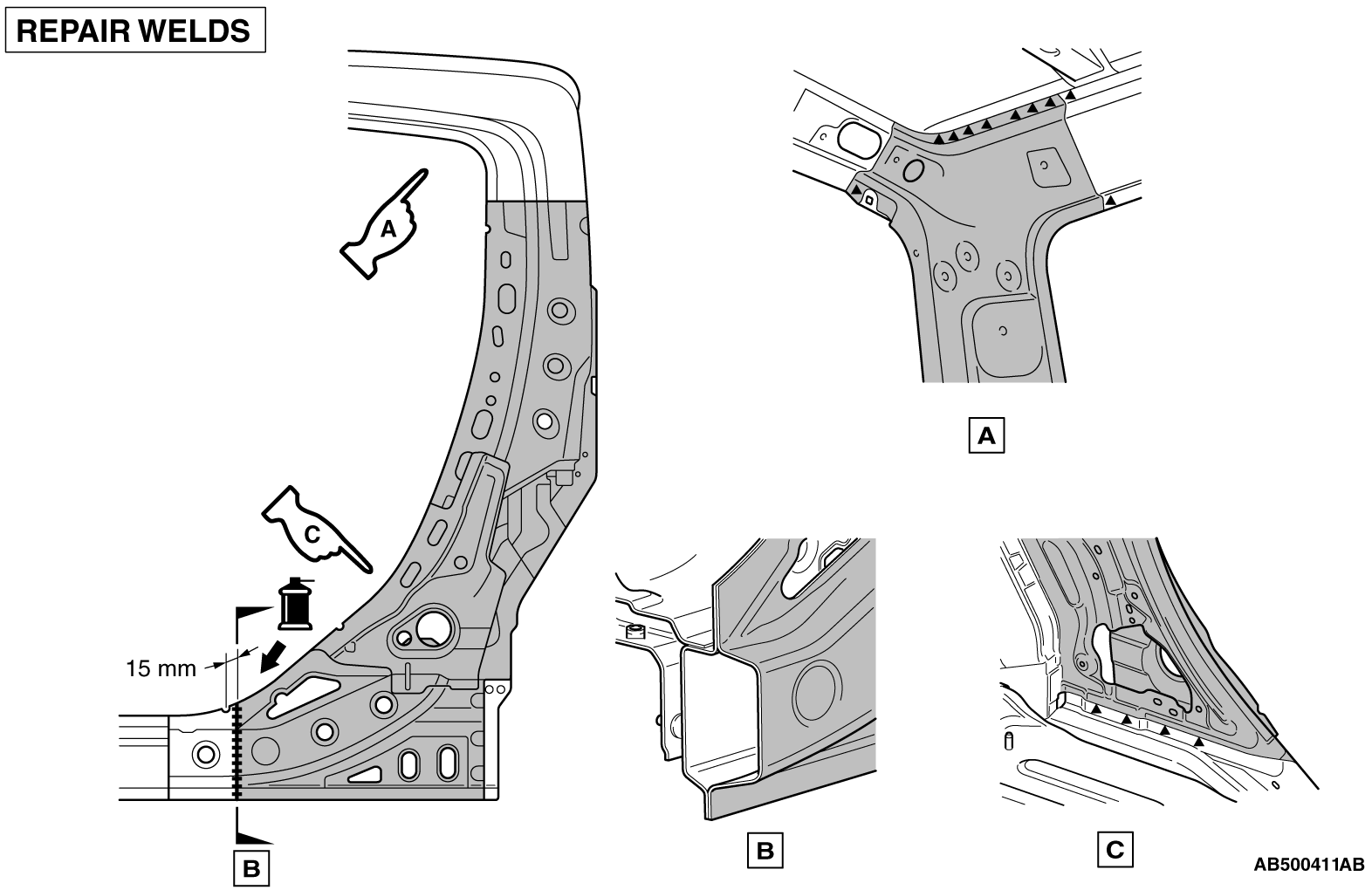

Refer to the Rear Pillar Outer on

for the welding points with the side outer panel.

NOTE ON REPAIR WORK

INSTALLATION

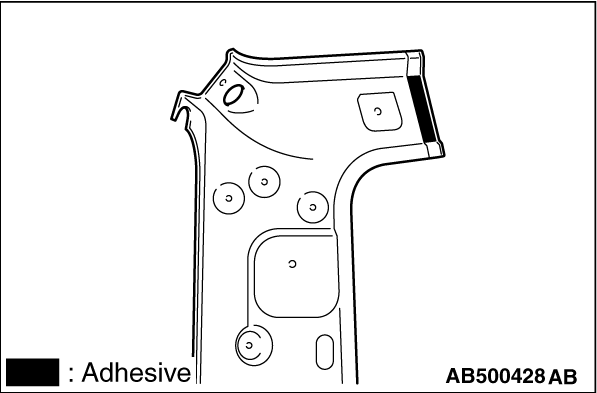

When assembling the new rear pillar inner parts, apply in advance adhesive to the areas shown in the figure of the instructions.
Adhesive: Epoxyayresin adhesive
Brand: 3M ATD Part No.8115 or equivalent
