SIDE GATE PANEL <CLUB CAB>
| note | Refer to the Rear End Sill on  for the welding point
with rear end sill outer. |
NOTE ON REPAIR WORK |
REMOVAL |
 |

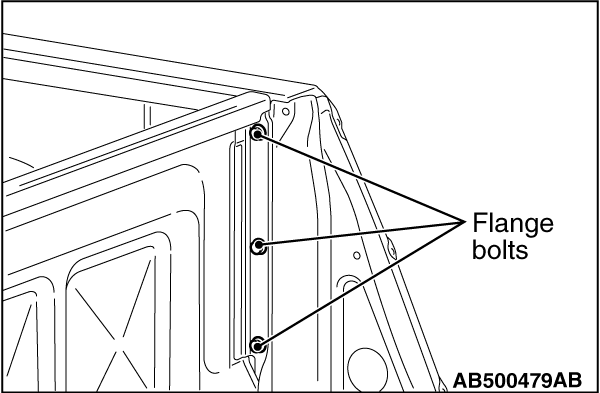

When removing the side gate outer panel, loosen the flange bolts. |
INSTALLATION |
 |
When installing a new side gate panel inner or a rear lamp housing, apply in advance adhesives
to the areas shown in the figure. Adhesive: Epoxyayresin adhesive Brand: 3M ATD Part No.8115 or equivalent |
