FENDER SHIELD

note

Refer to the Headlamp Support Section on

for the welding point with headlamp support panel.

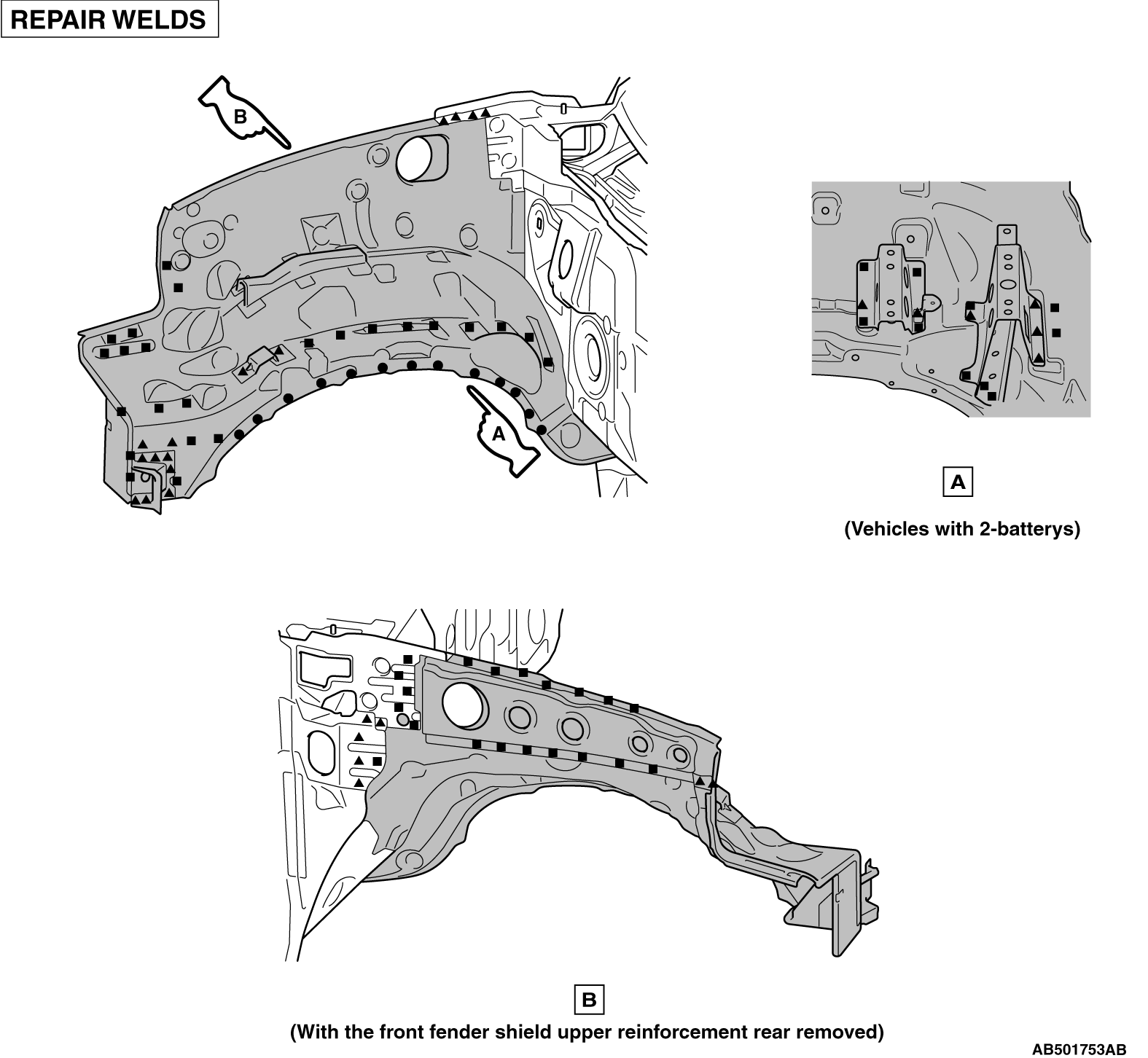

NOTE ON REPAIR WORK

INSTALLATION

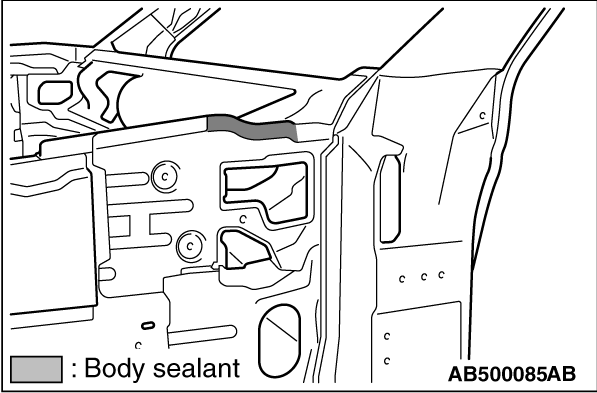

When assembling the new front fender shield upper reinforcement rear part, apply in advance body sealant to the areas shown in the figure of the instructions.
