1.Remove the front deck garnish.
|
|

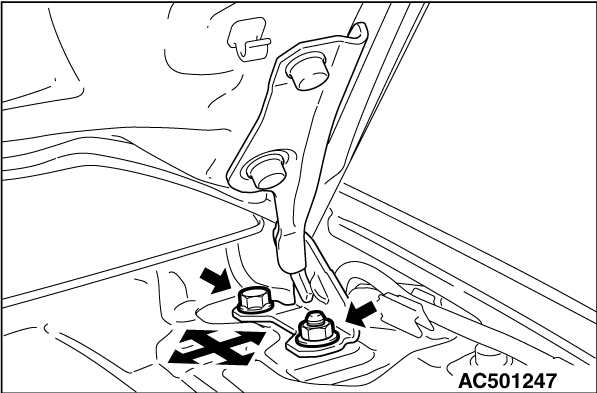

2.Loosen the hood hinge mounting bolt and nut but do not remove them. Then move the hood
front/rear and left/right to align the hood level and adjust the hood aronund
clearance.
3.After the adjustment, tighten the hood latch mounting bolt and nut.
Hood hinge mounting bolt tightening torque: 22 ± 4 N·m
Hood hinge mounting nut tightening torque: 12 ± 2 N·m
4.Install the front deck garnish.
|
|
|
1.Remove the radiator grille <Single cab> or front bumper assembly <Club cab
and Double cab>.
|
|

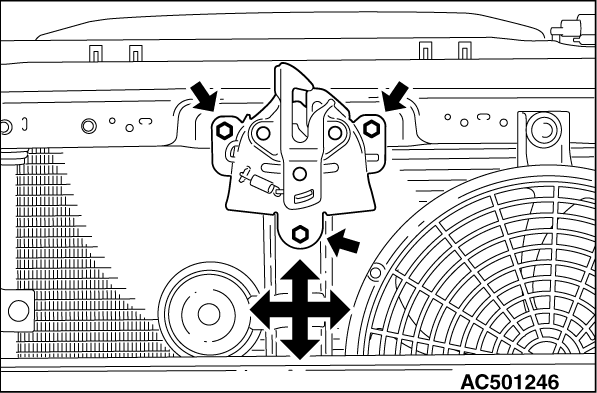

2.Loosen the hood latch mounting bolts but do not remove them. Then move the hood latch
up/down and left/right to align the hood level and adjust the hood striker engagement.
3.After the adjustment, tighten the hood latch mounting bolts.
Hood latch mounting bolts tightening torque: 9.0 ± 2.0 N·m
4.Install the radiator grille <Single cab> or front bumper assembly <Club cab
and Double cab>.
|
|

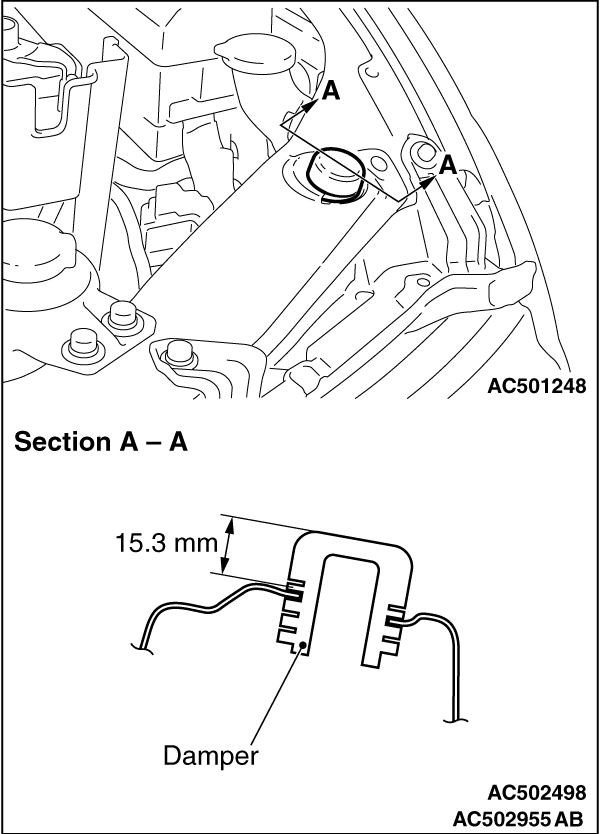

Turn the damper to the shown dimension to adjust the hood height. If the hood height is
still not even, turn the damper again until the height is even. The damper height is altered
by roughly 3 mm when the damper is rotated once.
| note |
If a rattling noise is heard due to the vibration of the hood when the vehicle is being
driven, adjust the damper height until the damper is seated on the hood.
|
|
