REMOVAL AND INSTALLATION


<2WD>


Pre-removal Operation
  • Move the selector lever to the following positions.

    • Selector lever : N
  • Rear Heater Duct Removal.
  • Front Floor Console Assembly Removal.

 Post-installation Operation
  • Front Floor Console Assembly Installation.
  • Rear Heater Duct Installation.
  • Transmission Control Cable Adjustment.
  • Check that the selector lever is moved to each position smoothly and correctly.




Selector lever assembly removal steps


1.
 Shift knob


2.
 Knob cover


3.
 Sleeve


4.
 Transmission control cable connection


5.
 Selector lever assembly



Transmission control cable assembly removal steps


4.
 Transmission control cable connection


6.
 Adjust lever connection


·
 No.2 crossmember


7.
 Transmission control cable assembly

<4WD>


Pre-removal Operation
  • Move the selector lever and transfer control lever to the following positions.

    • Selector lever : N
    • Transfer control lever : 4H
  • Rear Heater Duct Removal.
  • Front Floor Console Assembly Removal.

 Post-installation Operation
  • Front Floor Console Assembly Installation.
  • Rear Heater Duct Installation .
  • Transmission Control Cable Adjustment.
  • Check that the selector lever is moved to each position smoothly and correctly.

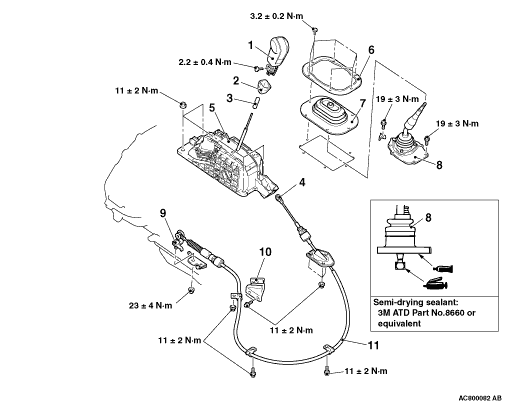

Selector lever assembly removal steps


1.
 Shift knob


2.
 Knob cover


3.
 Sleeve


4.
 Transmission control cable connection


5.
 Selector lever assembly


6.
 Dust cover retaining plate


7.
 Dust cover


8.
 Transfer control lever assembly



Transmission control cable assembly removal steps


4.
 Transmission control cable connection


9.
 Adjust lever connection


10.
 Cable bracket


·
 No.2 crossmember


11.
 Transmission control cable assembly
