REMOVAL AND INSTALLATION


caution
  • *: Indicates parts which should be temporarily tightened, and then fully tightened with the vehicle on the earth in the unladen condition.
Pre-installation Operation
  • Support the axle housing with a garage jack etc..
<2WD (EXCEPT HIGH RIDER)>


 <2WD (HIGH RIDER), 4WD>

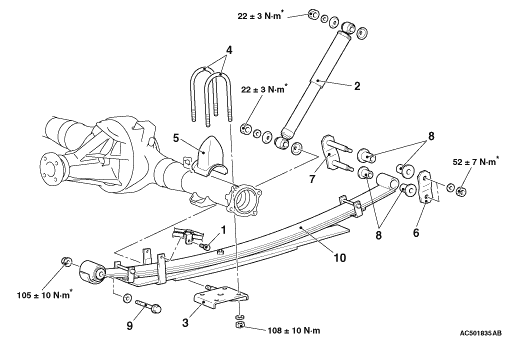

Removal steps


1.
 Parking brake cable attaching bolt

>>C<<
 2.
 Shock absorber


3.
 U-bolt seat

>>B<<
 4.
 U-bolts


5.
 Bump stopper


·
 Spare tyre (LH only)


6.
 Shackle plate

>>A<<
 7.
 Shackle assembly


8.
 Rubber bushings

>>A<<
 9.
 Bolt


10.
 Rear spring

INSTALLATION SERVICE POINTS

>>A<< BOLT/SHACKLE ASSEMBLY INSTALLATION

1.Install the bolt from the outside toward the inside of vehicle.
2.Install the shackle assembly from the inside toward the outside of vehicle.

>>B<< U-BOLTS INSTALLATION <2WD (HIGH RIDER), 4WD>

Install the u-bolts as shown in the figure.

>>C<< SHOCK ABSORBER INSTALLATION

Be sure to install the shock absorber washers (outer and inner) in the specified direction.
