REMOVAL AND INSTALLATION <2WD (except High rider)>


Pre-removal Operation
  • Loosening the parking brake cable adjusting nut (Refer to GROUP 36 - On-vehicle Service, Parking Brake Lever Stroke Check and Adjustment ).
  • Brake fluid draining

 Post-installation Operation
  • Brake fluid filling and air bleeding (Refer to ).
  • Parking brake lever stroke adjustment (Refer to GROUP 36 - On-vehicle Service, Parking Brake Lever Stroke Check and Adjustment ).<Vehicles with front separate seat>
  • Parking brake pull rod stroke adjustment (Refer to GROUP 36 - On-vehicle Service, Parking Brake Pull Rod Stroke Adjustment ).<Vehicles with front bench seat>

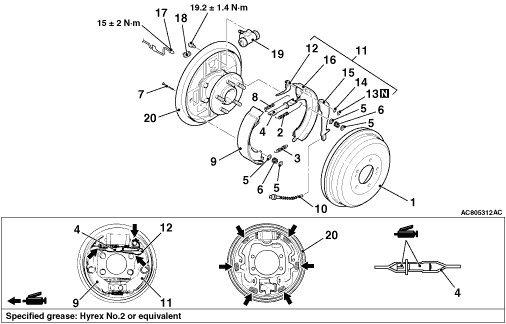

Removal steps


1.
 Brake drum


2.
 Shoe-to-shoe spring


3.
 Retainer spring


4.
 Auto adjuster assembly


5.
 Shoe hold-down cup


6.
 Shoe hold-down spring


7.
 Shoe hold-down pin


8.
 Shoe-to-lever spring


9.
 Shoe and lining assembly


10.
 Parking brake cable connection


11.
 Shoe and lever assembly


12.
 Adjuster lever
<<A>>
 >>B<<
 13.
 Retainer

>>A<<
 14.
 Wave washer


15.
 Parking lever


16.
 Shoe and lining assembly


17.
 Brake pipe connection


18.
 Plug


19.
 Wheel cylinder assembly


20.
 Backing plate (Refer to GROUP 27 - Axle Shaft Assembly ).

REMOVAL SERVICE POINT

<<A>> RETAINER REMOVAL

Use a flat-tipped screwdriver or a similar tool to open up the retainer joint. Then remove the retainer.

INSTALLATION SERVICE POINTS

>>A<< WAVE WASHER INSTALLATION

Install the wave washer in the direction shown in the illustration.

>>B<< RETAINER INSTALLATION

Use pliers or a similar tool to close the retainer end onto the pin.
