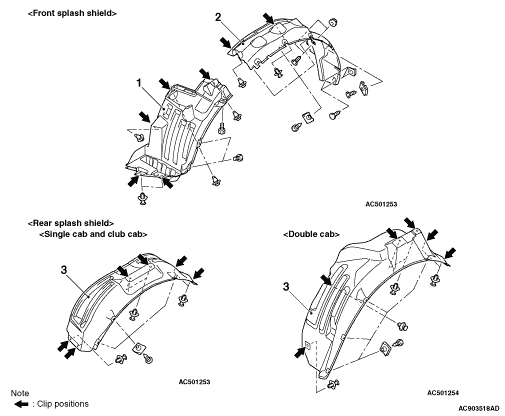

Front splash shield removal steps
|
|
|
·
|
Front overfender <Vehicles with wide fender> (Refer
to GROUP 51, Overfender  .)
|
|
|
·
|
Front mud guard (Refer to GROUP 51, Mud Guard .)
|
|
|
1.
|
Front splash shield (Front bumper side)
|
|
|
2.
|
Front splash shield (Fender side)
|
|
|
|
Rear splash shield removal steps
|
|
|
·
|
Rear overfender <Vehicles with wide fender> (Refer
to GROUP 51, Overfender .)
|
|
|
3.
|
Rear splash shield
|
