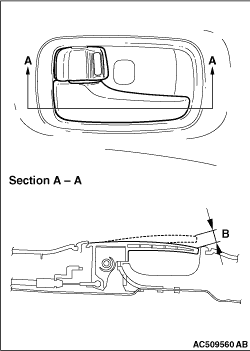

1.Check that the door inside handle play is within the standard value range.
Standard value (B): 5.2 - 19.6 mm (target value: 10.9 mm)
2.If it is outside the standard value range, check the door inside handle and door latch
assembly and replace them if necessary.
|
|
|
1.Remove the door trim assembly. Refer to GROUP 52A, Door Trim  <Single
cab and Club cab>, <Double cab>.
|
|

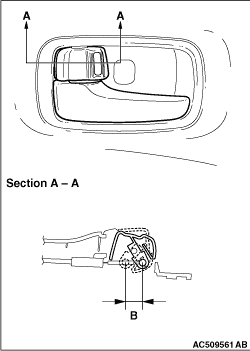

2.Check that the stroke of the door inside handle lock knob is within the standard value
range.
Standard value (B):
Front door: 14.5 - 16 mm (target value: 15 mm)
Rear door: 14.5 - 15.5 mm
|
|
3.If it is outside the standard value range, adjust the stroke of the inside handle lock
knob by using the outer cable end, which connects the inside handle lock knob to the inside lock
cable.
|
