REMOVAL AND INSTALLATION

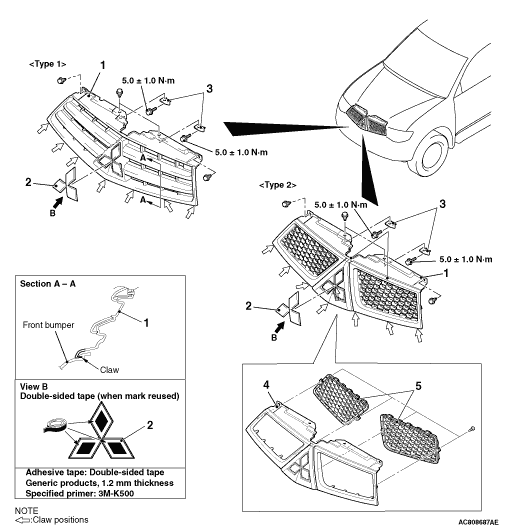

Removal steps


1.
 Radiator grille


2.
 Front three-diamond mark


3.
 Bracket


4.
 Radiator grille outer


5.
 Radiator grille inner

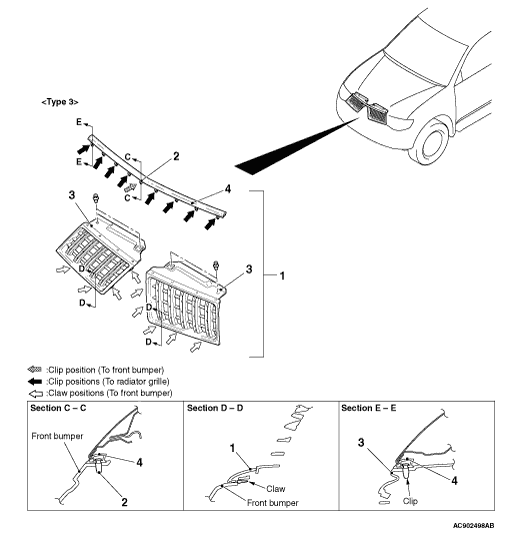

Removal steps <Type 3>


1.
 Radiator grille assembly
<<A>>
2.
 Radiator grille weatherstrip mounting clip


3.
 Radiator grille


4.
 Radiator grille weatherstrip

REMOVAL SERVICE POINT

<<A>> RADIATOR GRILLE WEATHERSTRIP MOUNTING CLIP REMOVAL

1.Disconnect the radiator grille weatherstrip mounting clip (1) (one location) that is connecting the radiator grille assembly (2) to the front bumper assembly.
2.Remove the radiator grille assembly (2) from the front bumper assembly toward a diagonal front upper direction.
