REMOVAL AND INSTALLATION

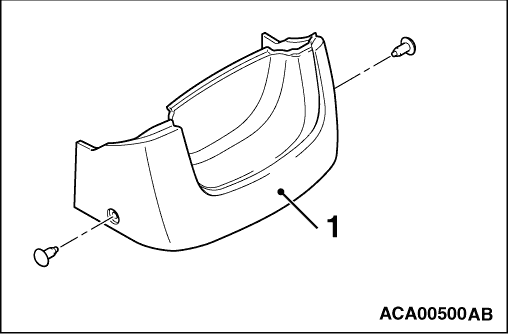

<Centre reinforce cover (Vehicles without front floor console assembly) >

Centre reinforce cover removal


1.
 Centre reinforce cover

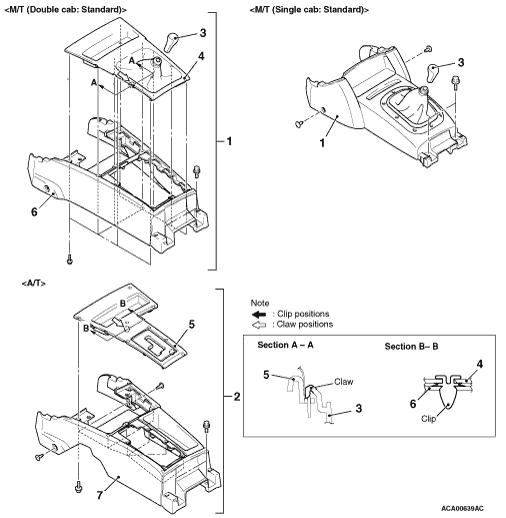

<Front floor console assembly (2WD)>

Front floor console assembly removal steps


1.
 Front floor console assembly <M/T>
<<A>>
2.
 Front floor console assembly <A/T>


3.
 Shift knob


4.
 Gearshift lever panel <M/T>


5.
 Gearshift lever panel <A/T>


6.
 Front floor console <M/T>


7.
 Front floor console <A/T>

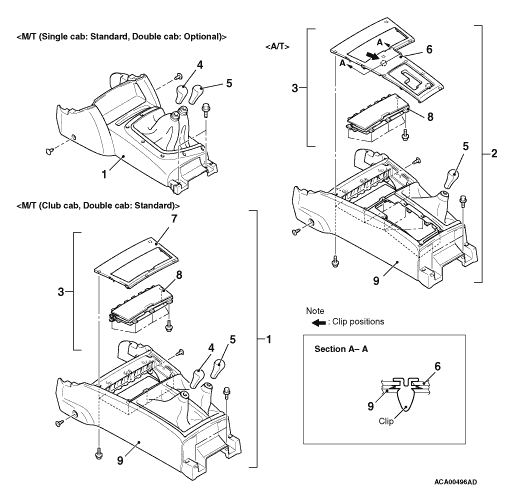

<Front floor console assembly (4WD)>

Front floor console assembly removal steps


1.
 Front floor console assembly <M/T>
<<A>>
2.
 Front floor console assembly <A/T>


3.
 Gearshift lever panel assembly


4.
 Shift knob <M/T>


5.
 Transfer shift lever knob


6.
 Gearshift lever panel <A/T>


7.
 Gearshift lever panel <M/T>


8.
 Floor console tray


9.
 Front floor console

REMOVAL SERVICE POINT

<<A>> FRONT FLOOR CONSOLE ASSEMBLY REMOVAL <A/T>

Loosen the screw of the selector lever knob, and turn the knob 90 degrees.
