REMOVAL AND INSTALLATION

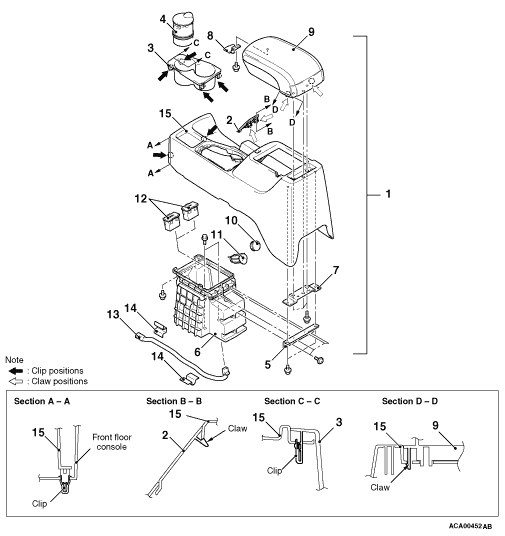

<Rear floor console assembly (Club cab, Double cab: Standard)>



Removal steps


1.
 Rear floor console assembly


2.
 Floor console panel


3.
 Floor console box cup holder


4.
 Floor console ashtray


5.
 Floor console bracket lower


6.
 Floor console box


7.
 Floor console bracket upper


8.
 Armrest large lock lever


9.
 Floor console lid


10.
 Floor console plug <Vehicles without accessory socket>


11.
 Accessory socket <Vehicles with accessory socket>


12.
 Audio & Video adapter <Vehicles with Audio & Video adapter>


13.
 Floor console harness <Vehicles with Audio & Video adapter>


14
 Wiring tape <Vehicles with Audio & Video adapter>


15
 Rear floor console <Vehicles with Audio & Video adapter>

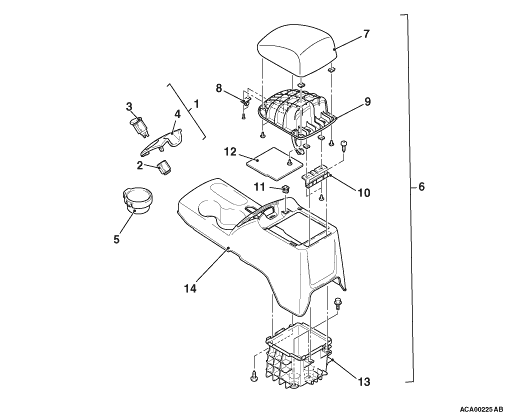

<Rear floor console assembly (Single cab: Standard)>



Removal steps


1.
 Rear floor console cover assembly


2.
 Accessory socket case


3.
 Accessory socket


4.
 Rear floor console cover


5.
 Console cup holder


6.
 Rear floor console assembly


7.
 Lid outer


8.
 Striker


9.
 Lid inner


10.
 Lid hinge


11.
 Rear floor console lock


12.
 Rear floor console mat


13.
 Box with lid


14.
 Rear floor console

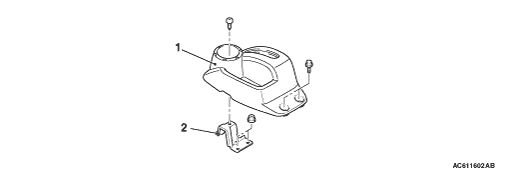

<Rear floor console parking brake lever cover (Vehicles without rear floor console assembly)>



Removal steps


1.
 Rear floor console parking brake lever cover


2.
 Rear floor console parking brake bracket
