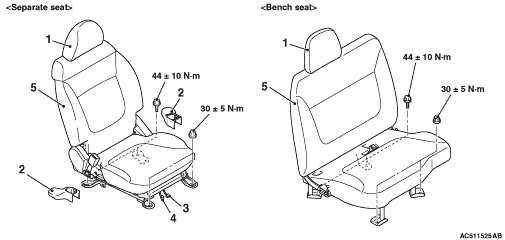

REMOVAL AND INSTALLATION


1.
 Headrestraint



Removal steps


2.
 Rear anchor cover


3.
 Power seat harness connecter <Vehicles with power seat>


4.
 Seat belt switch connector <Vehicles for GCC>

>>A<<
 5.
 Front seat assembly

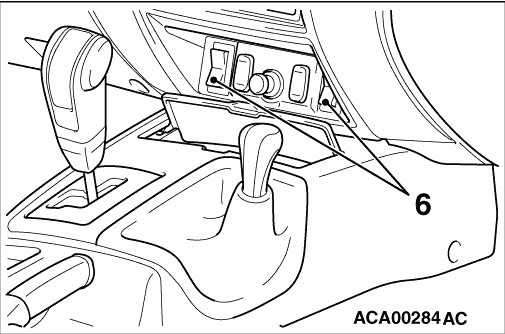

Heated seat switch removal step


6.
 Heated seat switch <Vehicles for Russia>

INSTALLATION SERVICE POINT

>>A<< FRONT SEAT ASSEMBLY INSTALLATION

1.Confirm that the seat slide is locked. Then temporarily tighten all the nuts and bolts with no load applied to the front seat cushion.
2.Tighten all the nuts and bolts to the specified torque.
Tightening torque:
    Bolt: 44 ± 10 N·m
    Nut: 30 ± 5 N·m
