DISASSEMBLY AND REASSEMBLY


<MANUAL SEAT>



Disassembly steps


1.
 Front seat reclining adjuster lever cover


2.
 Height adjuster lever <Except Single cab>


3.
 Front seat side shield cover


4.
 Inner seat belt


5.
 Front seatback assembly
<<A>>
6.
 Headrestraint guide


7.
 Hog ling


8.
 Front seatback cover


9.
 Front seatback pad


10.
 Front seatback frame


11.
 Front seat cushion assembly


12.
 Hog ling


13.
 Front seat cushion cover


14.
 Front seat cushion pad


15.
 Slide adjuster lever


16.
 Seat slide adjuster

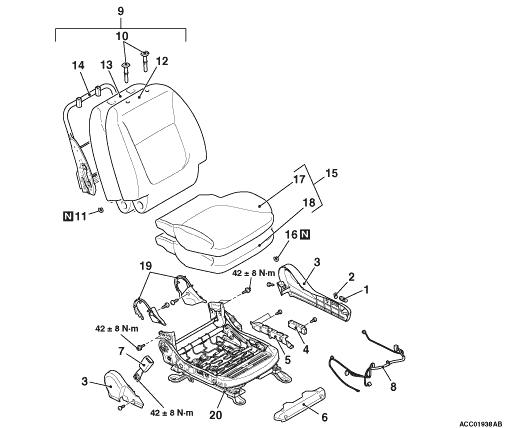

<POWER SEAT>



Disassembly steps


1.
 Front seat slide adjuster knob


2.
 Front seat reclining adjuster knob


3.
 Front seat side shield cover


4.
 Front power seat switch


5.
 Power seat switch bracket


6.
 Front seat motor cover


7.
 Inner seat belt


8.
 Front power seat harness


9.
 Front seatback assembly
<<A>>
10.
 Headrestraint guide


11.
 Hog ling


12.
 Front seatback cover


13.
 Front seatback pad


14.
 Front seatback Frame


15.
 Front seat cushion assembly


16.
 Hog ling


17.
 Front seat cushion cover


18.
 Front seat cushion pad


19.
 Front seat side shield inner cover


20.
 Seat slide adjuster

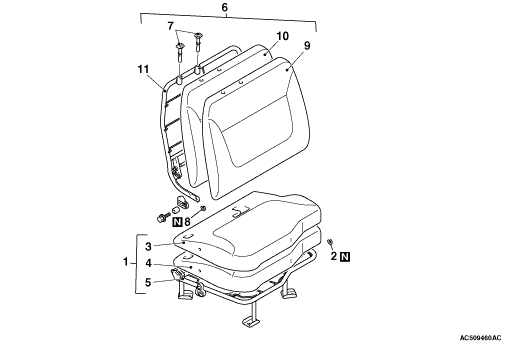

<BENCH SEAT>



Disassembly steps


1.
 Front seat cushion assembly


2.
 Hog ling


3.
 Front seat cushion cover


4.
 Front seat cushion pad


5.
 Inner seat cushion frame


6.
 Front seatback assembly
<<A>>
7.
 Headrestraint guide


8.
 Front seatback cover


9.
 Hog ling


10.
 Front seatback pad


11.
 Front seatback frame

DISASSEMBLY SERVICE POINT

<<A>> HEADRESTRAINT GUIDE REMOVAL

Remove the headrest guides while pushing the on both sides inward.
