DISASSEMBLY AND REASSEMBLY

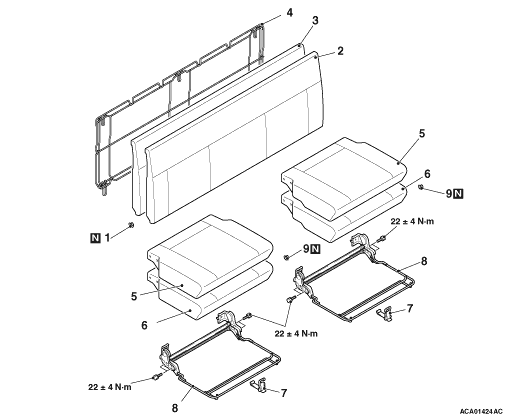

<CLUB CAB>



Disassembly steps


1.
 Hog ling


2.
 Rear seat back cover


3.
 Rear seat back pad


4.
 Rear seat back frame


5.
 Rear seat cushion cover


6
 Rear seat cushion pad


7
 Strap


8.
 Rear seat cushion frame


9.
 Hog ling

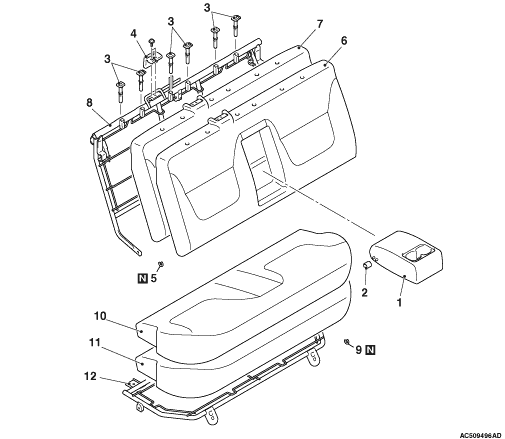

<DOUBLE CAB>



Disassembly steps


1.
 Rear seat armrest


2.
 Rear seat bushing
<<A>>
3.
 Headrestraint guide


4.
 Rear seat belt garnish


5.
 Hog ling


6.
 Rear seat back cover


7.
 Rear seat back pad


8.
 Rear seat back frame


9.
 hog ling


10.
 Rear seat cushion cover


11.
 Rear seat cushion pad


12.
 Rear seat cushion frame

DISASSEMBLY SERVICE POINT

<<A>> HEADRESTRAINT GUIDE REMOVAL

Remove the headrest guides while pushing the on both sides inward.
