1.Disconnect the negative battery terminal.
|
|
|
2.
| danger |
To prevents the air bag from deploying unintentionally, disconnect the passenger’s (front) air bag module connector C-02 to short the squib circuit.
|
Disconnect the passenger’s (front) air bag module connector C-02.
|
|
|

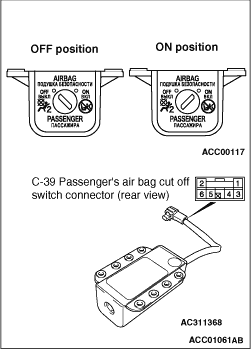

3.Disconnect the passenger’s air bag cut off switch connector C-39.
|
|
4.
| caution |
Do not insert a test probe into the terminal from its front side directly as the connector contact pressure may be weakened.
|
Make a short-circuit in connector terminals 1 and 2, and measure the resistance between connectors.
| note |
The harness, which is of less resistance (0.1 Ω or less), should be used to earth the terminals 1 and 2.
|
Switch position
|
Tester connection
|
Specified condition
|
ON position
|
4 - 5
|
Less than 0.1 Ω
|
3 - 6
|
Open circuit
|
OFF position
|
4 - 5
|
2.0 ± 0.3 Ω
|
3 - 6
|
Less than 0.2 Ω
|
|
