REMOVAL AND INSTALLATION


note When replacing the battery of the vehicles with sub battery, always replace the main and sub battery at the same time. If the batteries are not replaced at the same time, the service lives will be shorter.

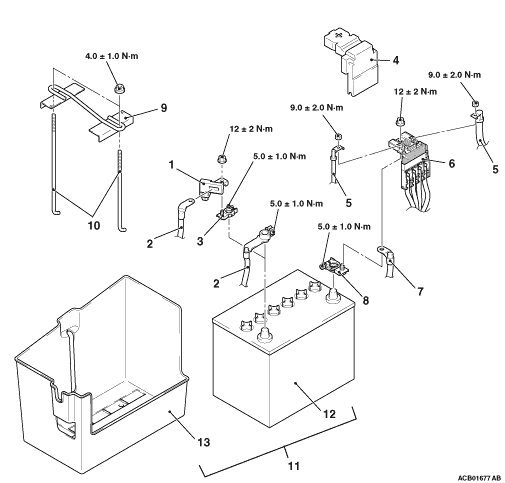

MAIN BATTERY

Removal steps


1.
 Battery current sensor <vehicles with battery current sensor>


2.
 Connection of the battery harness [negative battery terminal]


3.
 Battery terminal assembly [negative battery terminal] <vehicles with battery current sensor>


4.
 Fusible link box cover


5.
 Connection of the harness


6.
 Connection of the fusible link box assembly


7.
 Connection of the harness


8.
 Battery terminal assembly


9.
 Battery holder


10.
 Battery L-bolt


11.
 Battery and battery box


12.
 Battery


13.
 Battery box

SUB BATTERY

Removal steps


1.
 Battery (negative) terminal connection harness


2.
 Battery (positive) terminal connection harness


3.
 Battery holder


4.
 Battery L-bolt


5.
 Battery and battery box


6.
 Battery


7.
 Battery box
