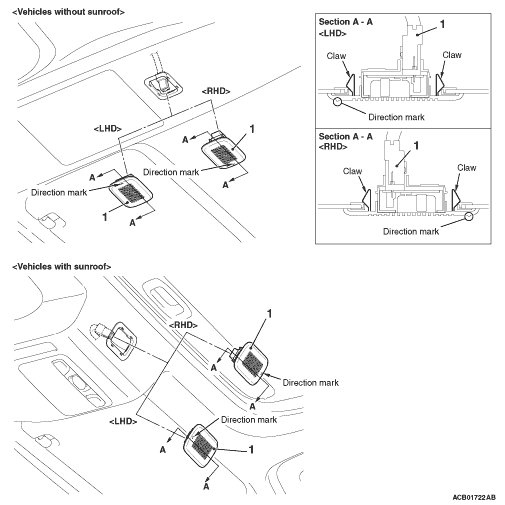

MICROPHONE UNIT REMOVAL AND INSTALLATION



Removal Step

>>A<<
 1.
 Microphone unit

INSTALLATION SERVICE POINT

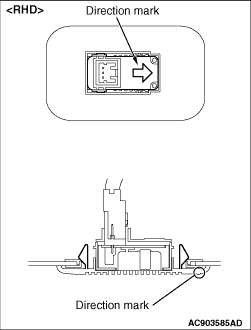

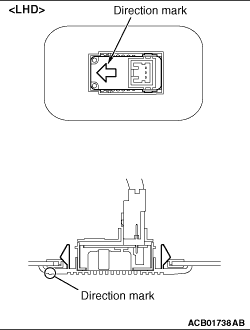

>>A<< MICROPHONE UNIT INSTALLATION


Install the microphone unit so that the arrow and direction mark face toward the driver’s seat.
