No.
|
Standard measurement point
|
Hole shape
|
Size mm
|
58
|
Centre of rear body mounting hole (left)
|
Round
|
13
|
59
|
Centre of rear body mounting hole (right)
|
Oblong
|
19×16
|
60
|
Centre of rear body mounting hole
|
Oblong
|
19×16
|
61
|
Centre of cross sill positioning hole
|
Round
|
12.2
|

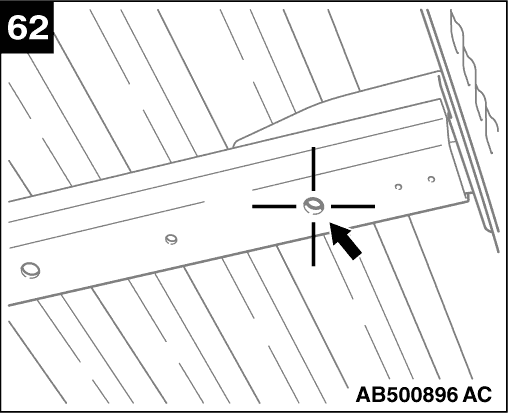

62
|
Centre of cross sill positioning hole
|
Round
|
12.2
|
63
|
Centre of rear body mounting hole (left)
|
Round
|
13
|
64
|
Centre of rear body mounting hole (right)
|
Oblong
|
19×16
|
65
|
Centre of rear body mounting hole
|
Oblong
|
19×16
|
No.
|
Standard measurement point
|
Hole shape
|
Size mm
|
66
|
Corner of side gate outer panel
|
-
|
-
|
67
|
Joint of side gate panel front and side gate outer panel
|
-
|
-
|
68
|
Centre of side gate inner panel drain hole
|
Round
|
20
|

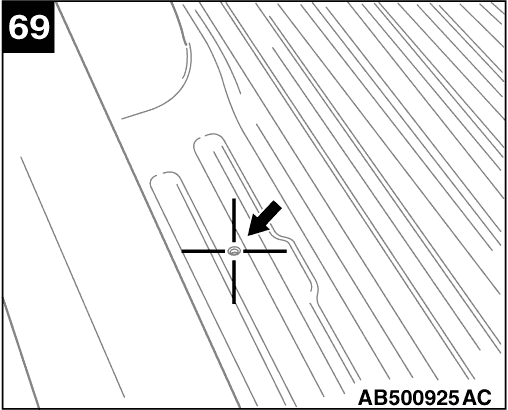

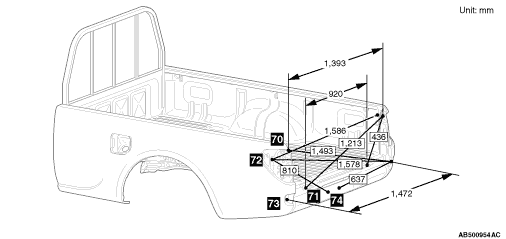

69
|
Centre of cross sill mounting hole
|
Round
|
13
|
70
|
Centre of rear gate striker mounting hole
|
Round
|
11
|
71
|
Centre of rear gate hinge mounting hole
|
Round
|
13
|

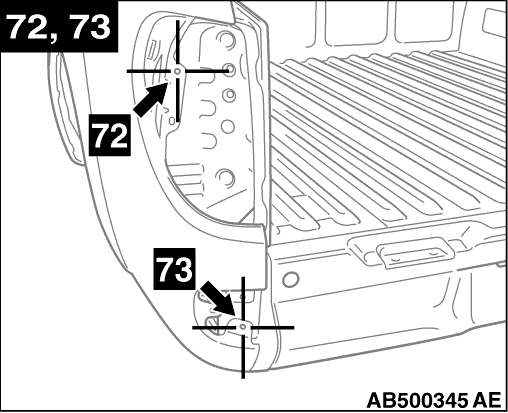

72
|
Centre of rear combination lamp mounting hole
|
Round
|
8
|
73
|
Centre of rear reflector mounting hole
|
Round
|
10
|
74
|
Centre of licence plate mounting hole
|
Round
|
12.7
|
