Inspection Procedure 29: Swirl Control Solenoid Valve System










OPERATION



  • Power is supplied to the swirl control solenoid valve (terminal No. 2) from the engine control relay (terminal No. 2).
  • The engine-ECU (terminal No. 150) makes the power transistor in the unit be in "ON" position, and that makes currents go on the swirl control solenoid valve (terminal No. 1).

FUNCTION



  • By the signals from the engine-ECU, the swirl control solenoid valve takes control switching the pressure in the vacuum tank between the vacuum pressure and the atmospheric pressure.

PROBABLE CAUSES



  • Failed swirl control solenoid valve
  • Open/short circuit or harness damage in swirl control solenoid valve circuit or loose connector contact
  • Failed engine-ECU

DIAGNOSIS PROCEDURE

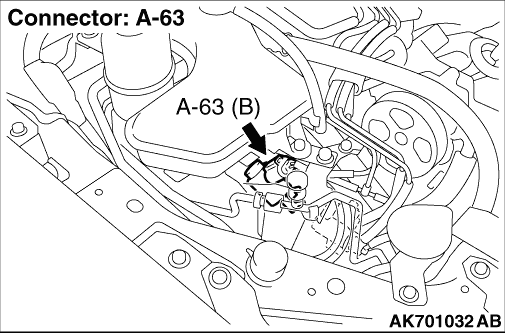

STEP 1. Connector check: A-63 swirl control solenoid valve connector

Q. Is the check result normal?
Go to Step 2 .
Repair or replace the connector.

STEP 2. Perform voltage measurement at A-63 swirl control solenoid valve connector.

  • Disconnect connector, and measure at the harness side.
  • Ignition switch: ON
  • Voltage between terminal No. 2 and earth.
OK: System voltage

Q. Is the check result normal?
Go to Step 4 .
Go to Step 3 .

STEP 3. Connector check: A-33X engine control relay connector

Q. Is the check result normal?

    Check and repair harness between A-63 (terminal No. 2) swirl control solenoid valve connector and A-33X (terminal No. 2) engine control relay connector.

    • Check power supply line for open/short circuit.
Repair or replace the connector.

STEP 4. Perform voltage measurement at B-28 engine-ECU connector.

  • Disconnect connector, and measure at the harness side.
  • Using a jumper wire, connect terminal No. 131 to earth.
  • Ignition switch: ON
  • Voltage between terminal No. 150 and earth.
OK: System voltage

Q. Is the check result normal?
Go to Step 8 .
Go to Step 5 .

STEP 5. Connector check: B-28 engine-ECU connector

Q. Is the check result normal?
Go to Step 6 .
Repair or replace the connector.

STEP 6. Check harness between A-63 (terminal No. 1) swirl control solenoid valve connector and B-28 (terminal No. 150) engine-ECU connector.

  • Check earthing line for open/short circuit.

Q. Is the check result normal?
Go to Step 7 .
Repair the damaged harness wire.

STEP 7. Check the trouble symptoms.

Q. Does trouble symptom persist?

Replace the swirl control solenoid valve assembly.
Intermittent malfunction (Refer to GROUP 00 - How to Use Troubleshooting/Inspection Service Points - How to Cope with Intermittent Malfunctions ).

STEP 8. Connector check: B-28 engine-ECU connector

Q. Is the check result normal?
Go to Step 9 .
Repair or replace the connector.

STEP 9. Check harness between A-63 (terminal No. 1) swirl control solenoid valve connector and B-28 (terminal No. 150) engine-ECU connector.

  • Check earthing line for damage.

Q. Is the check result normal?
Go to Step 10 .
Repair the damaged harness wire.

STEP 10. Check harness between A-63 (terminal No. 2) swirl control solenoid valve connector and A-33X (terminal No. 2) engine control relay connector.

  • Check power line for damage.

Q. Is the check result normal?
Go to Step 11 .
Repair the damaged harness wire.

STEP 11. Replace the swirl control solenoid valve assembly.

  • After replacing the swirl control solenoid valve assembly, re-check the trouble symptoms.

Q. Does trouble symptom persist?

Replace the engine-ECU.
The check is end.
