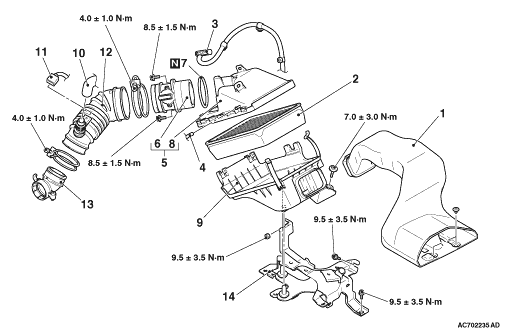

Removal steps
|
|
|
1.
|
Air cleaner intake duct
|
|
|
2.
|
Air cleaner element
|
|
|
3.
|
Air cleaner air flow sensor connector connection
|
|
|
4.
|
Vacuum hose connection
|
|
|
5.
|
Air cleaner cover and air cleaner air flow sensor assembly
|
|
|
6.
|
Air cleaner air flow sensor assembly
|
|
|
7.
|
O-ring
|
|
|
8.
|
Air cleaner cover
|
|
|
9.
|
Air cleaner body
|
|
|
10.
|
Breather hose connection
|
|
|
11.
|
Blow-by heater connector connection <Vehicles for cold climates>
|
|
|
12.
|
Air cleaner to turbocharger duct
|
|
|
13.
|
Engine air intake line connector
|
|
|
·
|
Engine-ECU (Refer to GROUP 13D - Engine-ECU  )
|
|
|
14.
|
Air cleaner bracket
|
