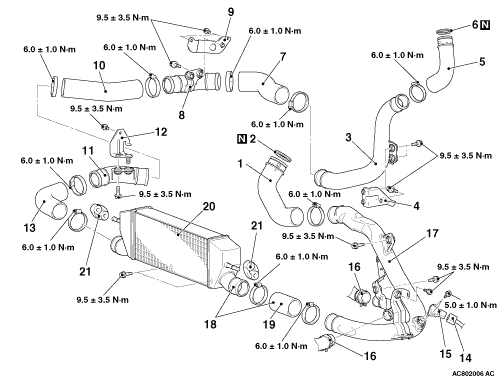

Intercooler air hose and pipe removal steps
|
|
|
1.
|
Intercooler outlet air hose D
|
|
|
2.
|
Engine air intake line O-ring
|
|
|
·
|
Engine room under cover front B (Refer to GROUP 51 - Under Cover  ).
|
|
|
3.
|
Intercooler inlet air pipe D
|
|
|
4.
|
Intercooler pipe bracket
|
|
|
5.
|
Intercooler intake air hose
|
|
|
6.
|
Engine air intake line O-ring
|
|
|
7.
|
Intercooler intake air hose E
|
|
|
8.
|
Intercooler inlet air pipe A
|
|
|
9.
|
Intercooler pipe bracket
|
|
|
10.
|
Intercooler intake air hose A
|
|
|
·
|
Front bumper and radiator grille assembly and front bumper reinforcement B (Refer to GROUP 51 - Front Bumper and Radiator Grille Assembly )
|
|
|
11.
|
Intercooler inlet air pipe B
|
|
|
12.
|
Intercooler pipe bracket
|
|
|
13.
|
Intercooler intake air hose B
|
|
|
14.
|
Boost sensor connector connection
|
|
|
15.
|
Boost sensor
|
|
|
·
|
Engine coolant refilling (Refer to GROUP 14 - On-vehicle Service, Engine Coolant Replacement ).
|
|
|
16.
|
Radiator lower hose connection
|
|
|
17.
|
Intercooler outlet air pipe C
|
|
|
19.
|
Intercooler outlet air hose C
|
|
|
|
Intercooler assembly removal steps
|
|
|
·
|
Front bumper and radiator grille assembly and front bumper reinforcement B (Refer to GROUP 51 - Front Bumper and Radiator Grille Assembly )
|
|
|
11.
|
Intercooler inlet air pipe B
|
|
|
12.
|
Intercooler pipe bracket
|
|
|
13.
|
Intercooler intake air hose B
|
|
|
18.
|
Intercooler outlet air hose C and intercooler assembly connection
|
|
|
20.
|
Intercooler assembly
|
|
|
21.
|
Intercooler hanger
|
