SELECTOR LEVER OPERATION CHECK
| 1.Pull the parking brake lever. |
 |

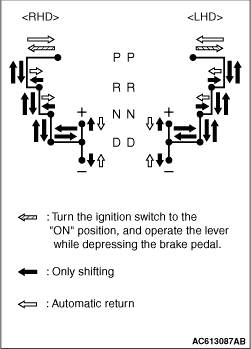

2.Move the selector lever to every range and check that the lever moves smoothly with secure
feel of engagement. 3.Make sure that the engine starts when the selector lever is in the "N" or "P" range, and does not start when the selector lever is in other range. 4.Start the engine. Release the parking brake lever. 5.Make sure that the vehicle moves forward when the selector lever is moved to "D" range, or to the 1st to 6th speed in the sports mode. Also make sure that the vehicle moves backward when the selector lever is moved from the "N" to "R" range. 6.Stop the engine. 7.Turn "ON" the ignition switch, and move the selector lever from the "P" to "R" range. Check that the backup light comes on and the buzzer sounds at this time.
|
