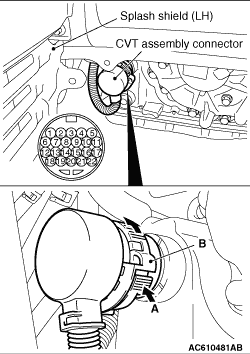

1.While pressing A in the figure, turn B anti-clockwise to unlock the CVT assembly connector,
and disconnect the connector. 2.Measure the resistance between the sensor-side connector terminal No. 17 of the CVT
assembly connector and the earth (terminal No. 19). Standard value:
|
Fluid temperature (°C)
|
Resistance kΩ
|
0
|
Approximately 15.5
|
20
|
Approximately 6.5
|
40
|
Approximately 3.1
|
60
|
Approximately 1.6
|
80
|
Approximately 0.9
|
100
|
Approximately 0.5
|
|
note |
In the information screen on the multi-information display, the fluid temperature warning
comes on when the CVT fluid temperature is approximately 135°C or higher, and automatically
goes out when the CVT fluid temperature dropped below approximately 132°C.
|
3.
caution |
The CVT fluid temperature sensor cannot be removed or replaced
as a single unit. When the CVT fluid temperature sensor needs to be replaced, replace the valve
body assembly.
|
When the resistance of the CVT fluid temperature sensor is outside the standard value,
and the fluid temperature warning comes on/goes out at other than the specified temperatures,
replace the valve body assembly and the harness.
|
