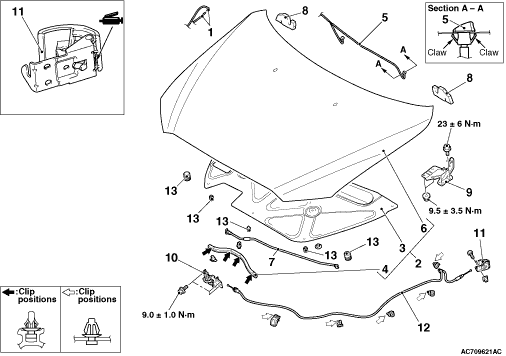

Hood removal steps
|
|
|
1.
|
Washer hose connect
|
|
|
2.
|
Hood assembly
|
|
|
3.
|

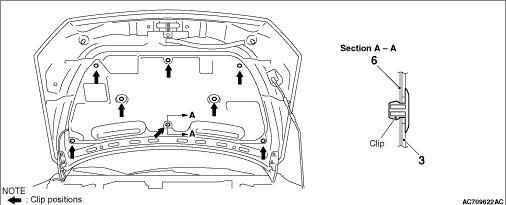

Hood insulator
|
|
|
4.
|
Hood weatherstrip front
|
|
|
5.
|
Washer hose, washer nozzle
|
|
|
6.
|
Hood
|
|
|
7.
|
Hood support rod
|
|
|
8.
|
Hood damper B
|
|
|
9.
|
Hood hinge
|
|
|
|
Hood latch and hood lock release cable removal steps
|
|
|
·
|
Headlamp support panel cover (Refer to GROUP 51 - Front Bumper Assembly and Radiator Grille  .)
|
|
|
10.
|
Hood latch
|
|
|
·
|
Cowl side trim (driver’s side) (Refer to GROUP 52A - Interior Trim .)
|
|
|
·
|
Instrument panel lower (Refer to GROUP 52A - Instrument Lower Panel .)
|
|
|
11.
|
Hood lock release handle
|
|
|
·
|
Front splash shield (Refer to .)
|
|
|
·
|
Headlamp assembly (driver’s side) (Refer to GROUP 54A - Headlamp .)
|
|
|
12.
|
Hood lock release cable
|
|
|
|
Hood damper A removal
|
|
|
13.
|
Hood damper A
|
