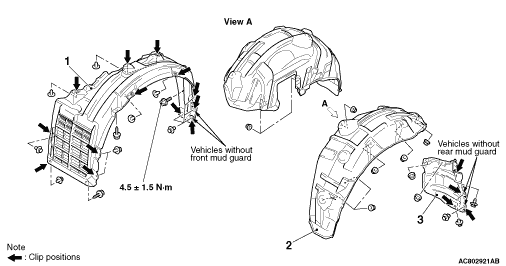

Front splash shield removal steps
|
|
|
·
|
Front mud guard <Vehicles with front mud guard> (Refer
to GROUP 51 - Mud guard  .)
|
|
|
1.
|
Front splash shield
|
|
|
|
Rear wheelhouse splash shield front removal
|
|
|
2.
|
Rear wheelhouse splash shield front
|
|
|
|
Rear wheelhouse splash shield rear removal steps
|
|
|
·
|
Rear mud guard <Vehicles with Rear mud guard> (Refer
to GROUP 51 - Mud guard .)
|
|
|
3.
|
Rear wheelhouse splash shield rear
|
