REMOVAL AND INSTALLATION

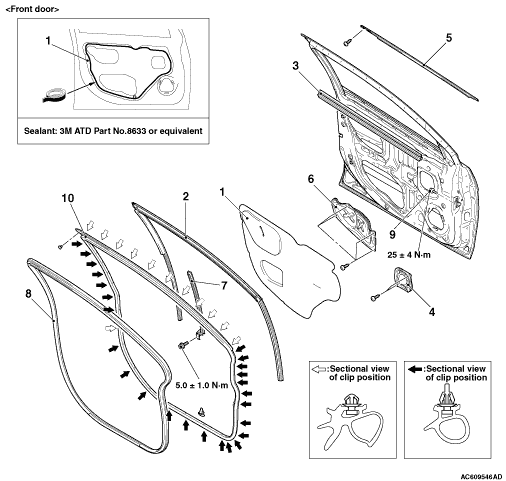

			Waterproof film removal steps
		·	Door trim assembly (Refer to GROUP 52A - Door Trim .)
	>>B<<	1.	Waterproof film
			Door window glass runchannel removal steps
	>>C<<	2.	Door window glass runchannel
			Door beltline weatherstrip inner removal steps
		·	Door trim assembly (Refer to GROUP 52A - Door Trim .)
		3.	Door beltline weatherstrip inner
			Door speaker cover removal steps <Vehicles with audio amplifier>
		·	Door trim assembly (Refer to GROUP 52A - Door Trim .)
	>>B<<	1.	Waterproof film
		4.	Door speaker cover
			Door beltline moulding removal steps <Standard>
		·	Door mirror assembly (Refer to GROUP 51 - Door Mirror .)
		5.	Door beltline moulding
			Door beltline moulding removal steps <Bright>
		·	Door mirror assembly (Refer to GROUP 51 - Door Mirror .)
		·	Door trim assembly (Refer to GROUP 52A - Door Trim .)
	>>B<<	1.	Waterproof film
		3.	Door beltline weatherstrip inner
		4.	Door speaker cover <Vehicles with audio amplifier>
<<A>>		5.	Door beltline moulding
			Speaker bracket removal steps <Vehicles with audio amplifier>
		·	Door trim assembly (Refer to GROUP 52A - Door Trim .)
	>>B<<	1.	Waterproof film
		6.	Door speaker bracket
			Rear lower sash removal steps
		·	Door trim assembly (Refer to GROUP 52A - Door Trim .)
	>>B<<	1.	Waterproof film
		6.	Door speaker bracket <Vehicles with audio amplifier>
		7.	Rear lower sash
			Door opening weatherstrip inner removal steps
		·	Cowl side trim and scuff plate (Refer to GROUP 52A - Interior Trim .)
		8.	Door opening weatherstrip inner
			Door opening weatherstrip outer removal steps
		9.	Door check connecting bolt
<<B>>	>>A<<	10.	Door opening weatherstrip outer

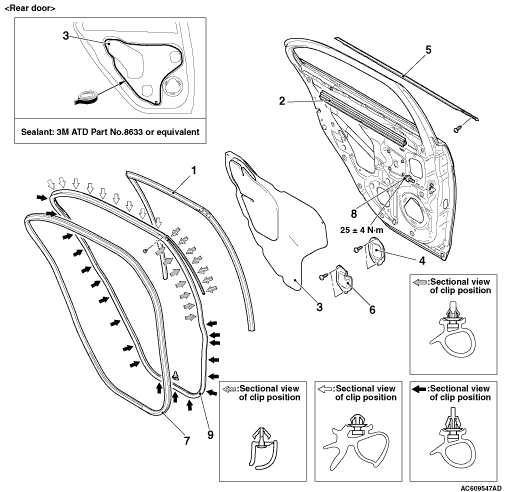

			Door window glass runchannel removal
	>>C<<	1.	Door window glass runchannel
			Door beltline weatherstrip inner removal steps
		·	Door trim assembly (Refer to GROUP 52A - Door Trim .)
		2.	Door beltline weatherstrip inner
			Waterproof film removal steps
		·	Door trim assembly (Refer to GROUP 52A - Door Trim .)
	>>B<<	3.	Waterproof film
			Door speaker cover removal steps <Vehicles with audio amplifier>
		·	Door trim assembly (Refer to GROUP 52A - Door Trim .)
	>>B<<	3.	Waterproof film
		4.	Door speaker cover
			Door beltline moulding removal <Standard>
		5.	Door beltline moulding
			Door beltline moulding removal steps <Bright>
		·	Door trim assembly (Refer to GROUP 52A - Door Trim .)
		2.	Door beltline weatherstrip inner
	>>B<<	3.	Waterproof film
		4.	Door speaker cover <Vehicles with audio amplifier>
<<B>>		5.	Door beltline moulding
			Door speaker bracket removal steps <Vehicles with audio amplifier>
		·	Door trim assembly (Refer to GROUP 52A - Door Trim .)
	>>B<<	3.	Waterproof film
		6.	Door speaker bracket
			Door opening weatherstrip inner removal steps
		·	Scuff plate (Refer to GROUP 52A - Interior Trim .)
		7.	Door opening weatherstrip inner
			Door opening weatherstrip outer removal steps
		8.	Door check connecting bolt
<<C>>	>>A<<	9.	Door opening weatherstrip outer

REMOVAL SERVICE POINTS

<<A>> DOOR BELTLINE MOULDING <FRONT DOOR> REMOVAL

Pry the door beltline moulding clip positions with the flat-tipped screwdriver and remove the door beltline moulding.

<<B>> DOOR BELTLINE MOULDING <REAR DOOR> REMOVAL

Prise the clip of the door beltline moulding using a flat-tipped screwdriver in the order of the numbers (from 1 to 4) shown in the figure. Lift the vehicle front side of the door beltline moulding.

note

The flat-tipped screwdriver cannot be used at clips 5 and 6 of the door beltline moulding shown in the figure.

2.Lift the door beltline moulding in the direction of the arrow in the figure, then remove the door beltline moulding.

<<C>>DOOR OPENING WEATHERSTRIP OUTER REMOVAL

Make the tool as shown in the figure, and remove the weatherstrip from the door panel.

INSTALLATION SERVICE POINTS

>>A<< DOOR OPENING WEATHERSTEIP OUTER INSTALLATION

The clip colour identifies the left and right weatherstrips so be sure to see the colours so as to install correctly.

Applicable side	Identification colour
Left door	Yellow
Right door	Purple

>>B<< WATERPROOF FILM INSTALLATION

caution

When a waterproof film is applied, guide the butyl rubber tape under the inner panel drain hole.

Apply the specified adhesive to the water-proof film as shown in the figure and stick the film.
Butyl rubber tape: 3M ATD Part number 8633 or equivalent

>>C<< DOOR WINDOW GLASS RUNCHANNEL INSTALLATION

Apply soapy water to the tip of the door window glass runchannel, and then install it to the door.
