INSPECTION

---

FRONT DOOR LOCK ACTUATOR CHECK <LH DRIVE VEHICLES>

ACTUATOR OPERATION CHECK Lever position Battery connection Lever operation At the "LOCK" position Connect terminal No.4 and the negative battery terminal. Connect terminal No.6 and the positive battery terminal. The lever moves from the "LOCK" position to the "UNLOCK" position. At the "UNLOCK" position Connect terminal No.6 and the negative battery terminal. Connect terminal No.4 and the positive battery terminal. The lever moves from the "UNLOCK" position to the "LOCK" position. ACTUATOR SWITCH CHECK <DRIVER’S SIDE (EXCEPT VEHICLES FOR RUSSIA)> Lever position Tester connection Specified condition At the "UNLOCK" position 1 - 3 Continuity exists (2 Ω or less) ACTUATOR SWITCH CHECK <DRIVER’S SIDE (VEHICLES FOR RUSSIA)> Lever position Tester connection Specified condition At the "UNLOCK" position 1 - 3 Continuity exists (2 Ω or less) At the "LOCK" position 1 - 2 Continuity exists (2 Ω or less) ACTUATOR SWITCH CHECK <FRONT PASSENGER’S SIDE (VEHICLES WITH KOS)> Lever position Tester connection Specified condition At the "UNLOCK" position 1 - 3 Continuity exists (2 Ω or less)

---

REAR DOOR LOCK ACTUATOR CHECK

ACTUATOR OPERATION CHECK Lever position Battery connection Lever operation At the "LOCK" position Connect terminal No.4 and the negative battery terminal. Connect terminal No.6 and the positive battery terminal. The lever moves from the "LOCK" position to the "UNLOCK" position. At the "UNLOCK" position Connect terminal No.6 and the negative battery terminal. Connect terminal No.4 and the positive battery terminal. The lever moves from the "UNLOCK" position to the "LOCK" position.

---

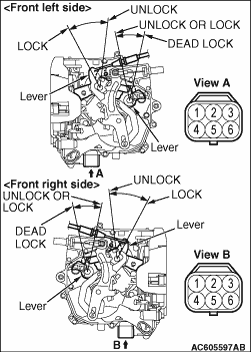

FRONT DOOR LOCK ACTUATOR CHECK <RH DRIVE VEHICLES>

ACTUATOR OPERATION CHECK Lever position Battery connection Lever operation At the "LOCK" position Connect terminal No.6 and the negative battery terminal. Connect terminal No.5 and the positive battery terminal. The lever moves from the "LOCK" position to the "DEAD LOCK" position. At the "LOCK or DEAD LOCK" position Connect terminal No.4 and the negative battery terminal. Connect terminal No.6 and the positive battery terminal. The lever moves from the "LOCK or DEAD LOCK" position to the "UNLOCK" position. At the "UNLOCK" position Connect terminal No.6 and the negative battery terminal. Connect terminal No.4 and the positive battery terminal. The lever moves from the "UNLOCK" position to the "LOCK" position. ACTUATOR SWITCH CHECK <DRIVER’S SIDE> Lever position Tester connection Specified condition At the "LOCK" position 2 - 3 Continuity (Less than 2 Ω) At the "UNLOCK" position 1 - 3 Continuity (Less than 2 Ω) ACTUATOR SWITCH CHECK <FRONT PASSENGER’S SIDE> Lever position Tester connection Specified condition At the "UNLOCK" position 1 - 3 Continuity (Less than 2 Ω)

---

REAR DOOR LOCK ACTUATOR CHECK <VEHICLES WITH DEAD LOCK SYSTEM (RH DRIVE VEHICLES)>

ACTUATOR OPERATION CHECK Lever position Battery connection Lever operation At the "LOCK" position Connect terminal No.6 and the negative battery terminal. Connect terminal No.5 and the positive battery terminal. The lever moves from the "LOCK" position to the "DEAD LOCK" position. At the "LOCK or DEAD LOCK" position Connect terminal No.4 and the negative battery terminal. Connect terminal No.6 and the positive battery terminal. The lever moves from the "LOCK or DEAD LOCK" position to the "UNLOCK" position. At the "UNLOCK" position Connect terminal No.6 and the negative battery terminal. Connect terminal No.4 and the positive battery terminal. The lever moves from the "UNLOCK" position to the "LOCK" position.

---

LOCK SWITCH CHECK <FOR VEHICLE WITH KEYLESS OPERATION SYSTEM (KOS)>

Switch position Terminal number Normal value ON 1 - 2 Continuity exists (2 Ω or less) OFF 1 - 2 No continuity

---

CENTRAL DOOR LOCK SWITCH CONTINUITY CHECK <LH DRIVE VEHICLES>

Remove the power window switch (Refer to GROUP 52A - Door Trim ). Switch position Tester connection Specified condition LOCK 13 - Earth Continuity exists (2 Ω or less) UNLOCK 5 - Earth Continuity exists (2 Ω or less)
