REMOVAL AND INSTALLATION


caution
  • Do not disassemble or throw the tailgate gas spring into the fire.
  • Before disposal, make a hole to remove the gas.
  • Make sure that the piston rod should not collect any foreign particles.
Pre-removal operation
  • Tailgate spoiler assembly removal <Vehicles with rear spoiler> (Refer to GROUP 51 - Tailgate Spoiler .)
  • Tailgate trim upper, tailgate trim side, tailgate trim lower removal (Refer to GROUP 52A - Tailgate Trim .)
  • Rear wiper motor and rear washer hose removal (Refer to GROUP 51 - Rear Wiper and Washer .)

 Post-installation operation
  • Tailgate alignment (Refer to .)
  • Adjustment of tailgate height (Refer to .)
  • Rear wiper motor and rear washer hose installation (Refer to GROUP 51 - Rear Wiper and Washer .)
  • Tailgate trim upper, tailgate trim side, tailgate trim lower installation (Refer to GROUP 52A - Tailgate Trim .)
  • Tailgate spoiler assembly installation <Vehicles with rear spoiler> (Refer to GROUP 51 - Tailgate Spoiler .)

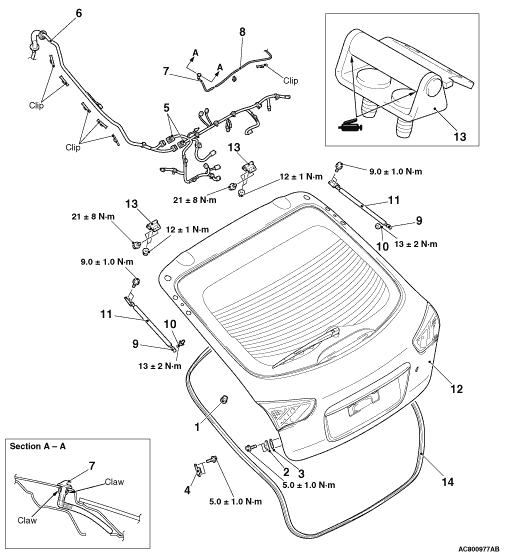

Tailgate assembly removal steps


1.
 Damper

>>D<<
 2.
 Tailgate male damper


3.
 Shim <Vehicles with shim>

>>C<<
 4.
 Tailgate damper


5.
 Tailgate harness connector connection
<<A>>
6.
 Rear floor wiring harness


7.
 Rear washer nozzle assembly
<<A>>
8.
 Rear washer hose
<<B>>
9.
 Tailgate gas spring connection


10.
 Ball joint

>>B<<
 11.
 Tailgate gas spring assembly


12.
 Tailgate assembly



Tailgate hinge removal steps


·
 Headlining (Refer to GROUP 52A - Headlining .)

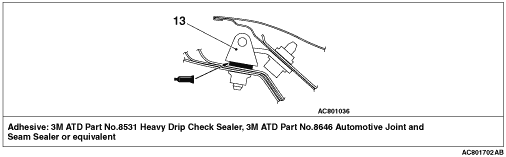

13.
 Tailgate hinge



Tailgate opening weatherstrip removal

>>A<<
 14.
 Tailgate opening weatherstrip

REMOVAL SERVICE POINTS

<<A>> REAR FLOOR WIRING HARNESS AND REAR WASHER HOSE REMOVAL

1.Cut the tape that is wrapped around the rear floor wiring harness, rear washer hose and clip with a knife or a similar tool. Then, remove the rear floor wiring harness and rear washer hose.
2.Remove the rear floor wiring harness and rear washer hose from the tailgate.

<<B>> TAILGATE GAS SPRING CONNECTION REMOVAL

As shown in the figure, slide the pin and remove the tailgate gas spring assembly from the ball joint in the direction of the arrow.

INSTALLATION SERVICE POINTS

>>A<< TAILGATE OPENING WEATHERSTRIP INSTALLATION

The marking on the tailgate opening weatherstrip should be positioned at the centre of the body.

>>B<< TAILGATE GAS SPRING ASSEMBLY INSTALLATION

Install the mounting bolts of tailgate gas spring assembly in the order shown in the illustration.

>>C<< TAILGATE DAMPER INSTALLATION

Install the mounting bolts of tailgate damper in the order shown in the illustration.

>>D<< TAILGATE MALE DAMPER INSTALLATION

Install the mounting bolts of tailgate male damper in the order shown in the illustration.
