REMOVAL AND INSTALLATION


caution When WCM has been replaced, all key ID codes should be registered, referring to the ID code registration necessity judgement table .

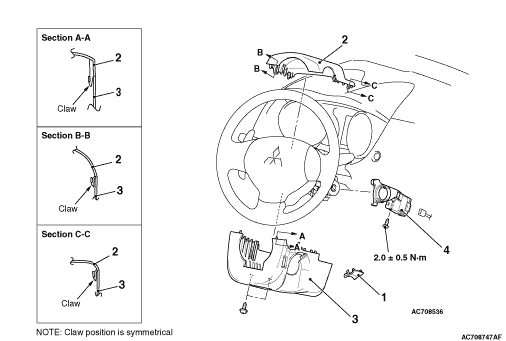

Removal steps


1.
 Ignition key cover


2.
 Steering column upper cover


3.
 Steering column lower cover

>>A<<
 4.
 WCM

INSTALLATION SERVICE POINT

>>A<< WCM INSTALLATION
Check that the top claw of WCM is fixed securely to the boss of steering lock and the antenna is not floated on the key cylinder.
