Removal steps
|
|
|
1.
|

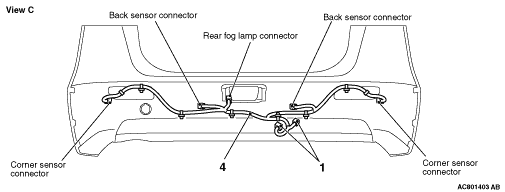

Rear bumper harness connector connection
|
|
|
2.
|
Tailgate damper
|
|
|
3.
|

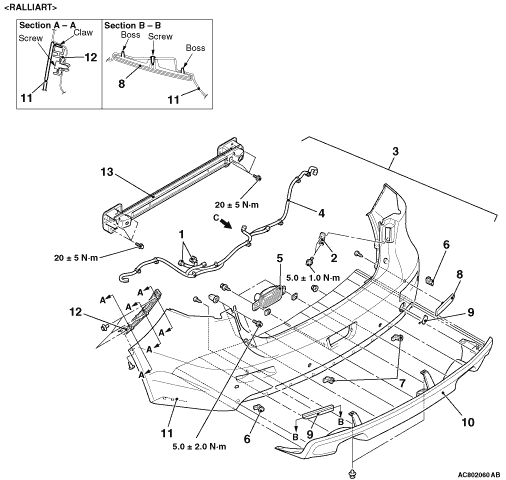

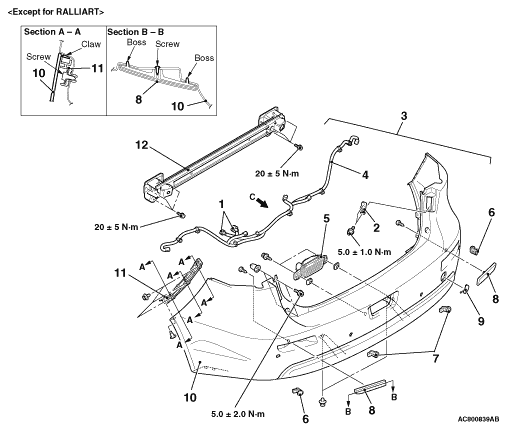

Rear bumper assembly
|
|
|
4.
|
Rear bumper harness
|
|
|
5.
|
Rear fog lamp assembly
|
|
|
6.
|
Corner sensor <Vehicles with reversing sensor system>
|
|
|
7.
|
Back sensor <Vehicles with reversing sensor system>
|
|
|
8.
|
Reflector
|
|
|
9.
|
Rear bumper cover
|
|
|
10.
|
Rear bumper face
|
|
|
11.
|
Rear bumper face support bracket
|
|
|
12.
|
Rear bumper reinforcement
|
