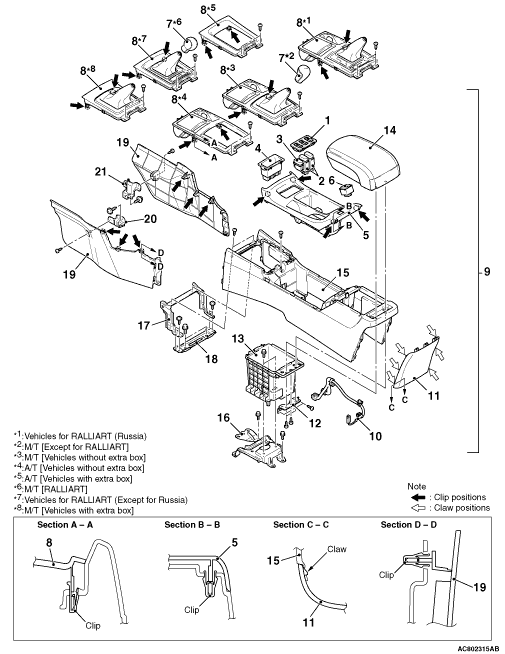

REMOVAL AND INSTALLATION



Removal steps


1.
 Floor console switch panel


2.
 Floor console plug <Vehicles with floor console plug>


3.
 AFS control switch <Vehicles with AFS control switch>


4.
 Floor console tray


5.
 Floor console box cup holder


6.
 Heated seat switch <Vehicles with heated seat>


7.
 Shift knob


8.
 Floor console panel assembly


9.
 Floor console assembly


10.
 Floor console harness


11.
 Floor console cover


12.
 Rear console bracket


13.
 Floor console box


14.
 Floor console armrest

>>A<<
 15.
 Floor console


16.
 Floor console bracket rear


17.
 Floor console bracket (A)


18.
 Floor console bracket (B)


19.
 Floor console side cover


20.
 Floor console front bracket (LH)


21.
 Floor console front bracket (RH)

REASSEMBLY SERVICE POINT

>>A<< FLOOR CONSOLE REASSEMBLY

Floor console rear ends (shown in the dotted lines) may damage when removing the floor console cover. You can neglect this damage and floor console is reusable.
