DISASSEMBLY AND REASSEMBLY

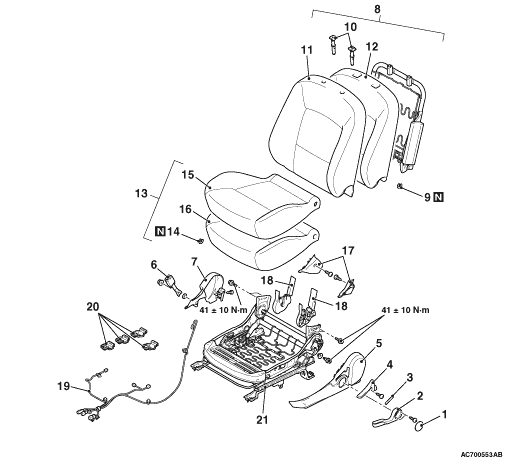

<STANDARD SEAT, SPORT SEAT>



Disassembly steps
<<A>>
1.
 Height adjuster lever cap


2.
 Height adjuster lever


3.
 Reclining adjuster cap


4.
 Reclining adjuster lever


5.
 Side shield cover


6.
 Inner seat belt


7.
 Hinge cover


8.
 Front seatback pad and frame assembly


9.
 Hog ring
<<B>>
10.
 Headrestraint guide


11.
 Front seatback cover


12.
 Front seatback pad


13.
 Front seat cushion assembly


14.
 Hog ring


15.
 Front seat cushion cover


16.
 Front seat cushion pad


17.
 Side shield inner cover


18.
 Reclining adjuster cover


19.
 Harness


20.
 Hook


21.
 Front seat cushion frame

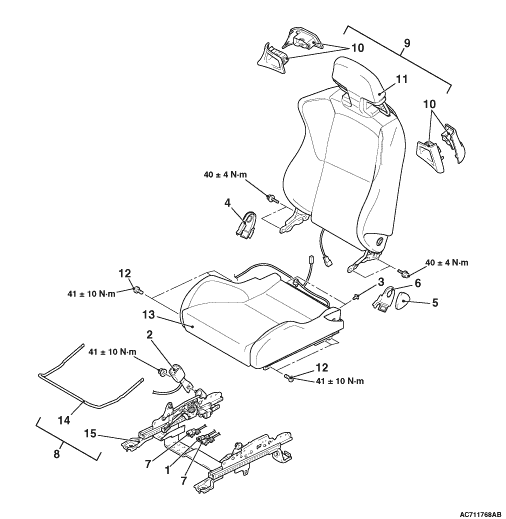

<RECARO SEAT>



Disassembly steps


1.
 Seat belt harness connector


2.
 Seat belt inner


3.
 Seat cushion cover fixation clip


4.
 Hinge cover


5.
 Reclining adjuster knob


6.
 Side shield cover


7.
 Heated seat & Side air bag harness connector


8.
 Slide adjuster assembly


9.
 Front seatback assembly


10.
 Headrestraint garnish


11.
 Front seatback


12.
 Slide rail adjuster mounting bolts


13.
 Front seat cushion


14.
 Front seat slide adjuster lever


15.
 Slide adjuster

DISASSEMBLY SERVICE POINTS

<<A>> HEIGHT ADJUSTER CAP REMOVAL

Use special tool MB990784 as shown to remove the height adjuster lever cap.

<<B>> HEADRESTRAINT GUIDE REMOVAL

Peel of the front seatback cover and pad to access the headrestraint guides. Pull off the guides upwards while pushing the tabs (arrows) as shown.
