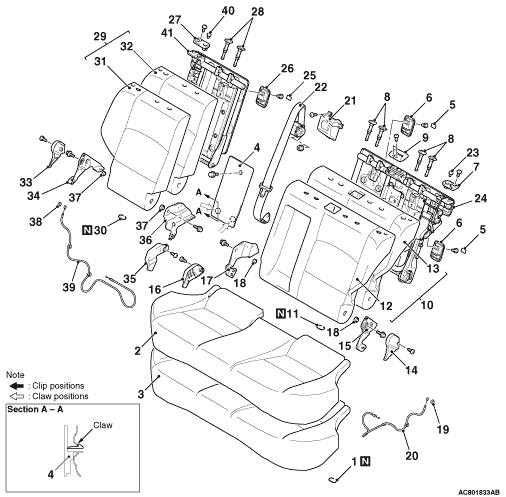

DISASSEMBLY AND REASSEMBLY



Disassembly steps


1.
 Hog ring


2.
 Rear seat cushion cover


3.
 Rear seat cushion pad


4.
 Rear seat armrest board


5.
 Rear seat cap


6.
 Rear seat catch cover


7.
 Rear seatbelt retractor cover
<<A>>
8.
 Rear seat headrest guide
<<B>>
9.
 Rear seatbelt sash guide cover


10.
 Rear seatback pad & cover


11.
 Hog ring


12.
 Rear seatback cover


13.
 Rear seatback pad


14.
 Rear seat side hinge cover (LH)


15.
 Rear seat side hinge (LH)


16.
 Rear seat reclining adjuster cover (LH)


17.
 Rear seat reclining adjuster (LH)


18.
 Rear seat bushing


19.
 Rear seat spring nut


20.
 Rear seat folding cable


21.
 Rear seat ELR cover


22.
 Rear seat belt outer centre


23.
 Rear seat folding knob


24.
 Rear seatback frame


25.
 Rear seat cap


26.
 Rear seat catch cover


27.
 Rear seatbelt retractor cover
<<A>>
28.
 Rear seat headrest guide


29.
 Rear seatback pad & cover


30.
 Hog ring


31.
 Rear seatback cover


32.
 Rear seatback pad


33.
 Rear seat side hinge cover (RH)


34.
 Rear seat side hinge (RH)


35.
 Rear seat reclining adjuster cover (RH)


36.
 Rear seat reclining adjuster (RH)


37.
 Rear seat bushing


38.
 Rear seat spring nut


39.
 Rear seat folding cable


40.
 Rear seat folding knob


41.
 Rear seatback frame

DISASSEMBLY SERVICE POINTS

<<A>> REAR SEAT HEADRESTRAINT GUIDE REMOVAL

Peel off the rear seatback cover and pad to access the headrestraint guides. Pull off the guides upwards while pushing the tabs (arrows) as shown.

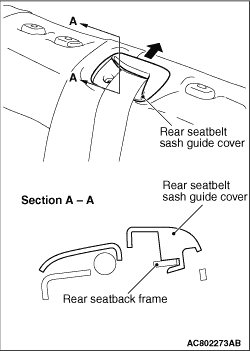

<<B>> REAR SEATBELT SASH GUIDE COVER REMOVAL

Remove the rear seat belt sash guide cover by pulling it toward the rear side of the rear seatback.
