REMOVAL AND INSTALLATION


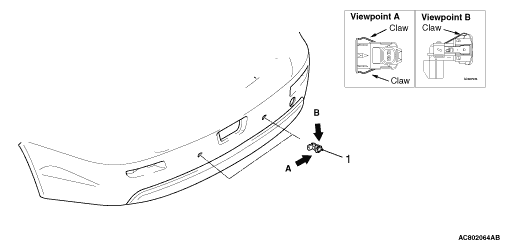

FORWARD DISTANCE WARNING SENSOR (BACK SONAR SENSOR)



Removal Step
<<A>>
 >>A<<
 1.
 Forward distance warning sensor

CORNER CLEARANCE SENSOR (CORNER SENSOR)



Removal Step

>>B<<
 1.
 Corner clearance sensor

REMOVAL SERVICE POINT

<<A>> FORWARD DISTANCE WARNING SENSOR REMOVAL

  • First disconnect the connector joint, and then remove the sensor.

INSTALLATION SERVICE POINTS

>>A<< FORWARD DISTANCE WARNING SENSOR INSTALLATION

Install the forward distance warning sensor so that the UP mark faces the top surface.

>>B<< CORNER CLEARANCE SENSOR INSTALLATION

Install the sensor so that the sensor connector becomes horizontal to the earth (the connector side mark is in lateral direction).
