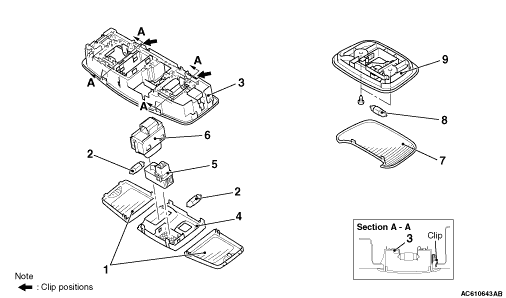

ROOM LAMP REMOVAL AND INSTALLATION



Removal Steps


1.
 Front room lamp lens


2.
 Room lamp bulb
<<A>>
3.
 Front room lamp


4.
 Front room lamp cover


5.
 Microphone unit <Vehicles with hands-free cellular phone system>


6.
 Sunroof switch <Vehicles with sunroof>


7.
 Rear room lamp lens


8.
 Room lamp bulb


9.
 Rear room lamp

REMOVAL SERVICE POINT

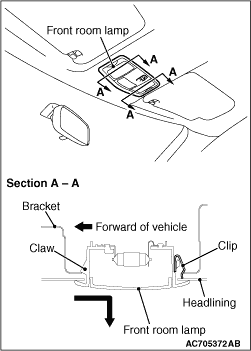

<<A>> FRONT ROOM LAMP REMOVAL

While pressing the front room lamp toward the rear of the vehicle, slide the front side of the front room lamp downward, and remove the front room lamp.
