REMOVAL AND INSTALLATION


caution When replacing the ETACS-ECU, use the ETACS-ECU to which the chassis number is written and the coding is implemented. Also, if diagnosis code No. B1761 "Chassis No. not programmed" or No. B222C "Coding not completed" is set to the ETACS-ECU, replace with the ETACS-ECU to which the chassis number same as that of vehicle is written and the coding is implemented.
Pre-removal and Post-installation Operation
    Instrument panel lower (Refer to GROUP 52A - Instrument Lower Panel .) <LHD>
    Glove box (Refer to GROUP 52A - Glove box .) <RHD>

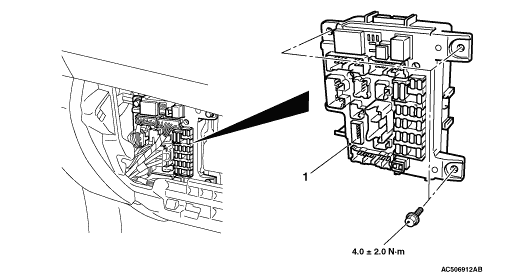

Removal Steps

>>A<<
 1.
 ETACS-ECU

INSTALLATION SERVICE POINT

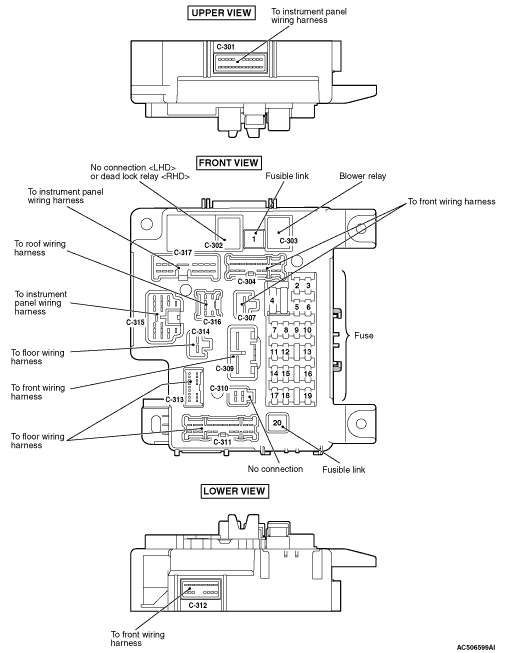

>>A<< ETACS-ECU
