Diagnosis Item 16: Diagnose the lines between joint connector (CAN2) and joint connector (CAN3)


caution When servicing a CAN bus line, earth yourself by touching a metal object such as an unpainted water pipe. If you fail to do, a component connected to the CAN bus line may be broken.










FUNCTION



TROUBLE JUDGEMENT CONDITIONS



TROUBLESHOOTING HINTS



  • Malfunction of the connector [joint connector (CAN2), joint connector (CAN3) or intermediate connector failed]
  • Malfunction of the wiring harness [open circuit between joint connector (CAN2) and joint connector (CAN3)]

DIAGNOSIS PROCEDURE

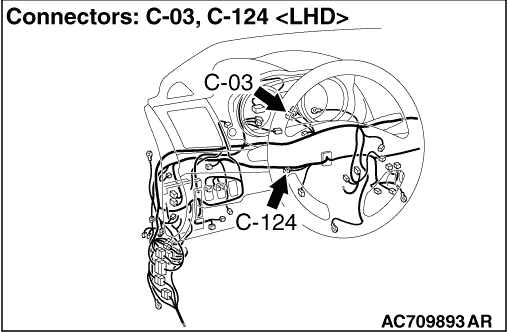

STEP 1. Connector check: C-03 joint connector (CAN2) and C-124 joint connector (CAN3)
caution The strand end of the twist wire should be within 10 cm from the connector. For details refer to .

Q. Is the check result normal?
Go to Step 2.
Repair the defective connector.

STEP 2. Check the wiring harness between C-03 joint connector (CAN2) and C-124 joint connector (CAN3)
caution Strictly observe the specified wiring harness repair procedure. For details refer to .
Disconnect joint connector (CAN2) and joint connector (CAN3), and check the following wiring harness for open circuit
(1)The wiring harness between C-03 joint connector (CAN2) terminal No.5 <LHD> or 4 <RHD> and C-124 joint connector (CAN3) terminal No.5 <CAN_H>
OK: Continuity exists (2 Ω or less)
(2)The wiring harness between C-03 joint connector (CAN2) terminal No.16 <LHD> or 15 <RHD> and C-124 joint connector (CAN3) terminal No.16 <CAN_L>
OK: Continuity exists (2 Ω or less)
note Check C-128 intermediate connector, and repair if necessary.

Q. Is the check result normal?
The trouble can be an intermittent malfunction (Refer to GROUP 00 - How to use Troubleshooting/inspection Service Points - How to Cope with Intermittent Malfunctions ).
Repair the wiring harness.
