GENERAL INFORMATION
SPECIFICATIONS
| Item |
Specification |
|
| Transmission model |
F1CJA |
|
| Torque converter |
Model |
3-element, 1-stage, 2-phase |
| Stall torque ratio |
1.99 |
|
| Lock-up |
Present |
|
| Transmission type |
Forward automatic CVT (steel belt-driven), reverse 1 speed |
|
| Gear ratio |
Forward |
2.349 - 0.394 |
| Reverse |
1.750 |
|
| Shift position |
P-R-N-D+6-speed sport mode (with the paddle shift) |
|
| Final reduction gear ratio |
6.120 |
|
| Control type |
Electronically-controlled |
|
| Function |
Shift control |
Present |
| Line pressure control |
Present |
|
| Select control |
Present |
|
| Lock-up control |
Present |
|
| Self-diagnosis function |
Present |
|
| Fail-safe function |
Present |
|
| Number of speedometer gears (drive/driven) |
-(detected by the ABS sensor rotor) |
|
| Oil pump |
Model |
Vane-type pump |
| Drive type |
Driven by the engine, sprocket, and chain |
|
| CVT fluid |
Brand name |
DIA QUEEN CVTF-J1 |
| Capacity (L) |
Approximately 7.8 |
|

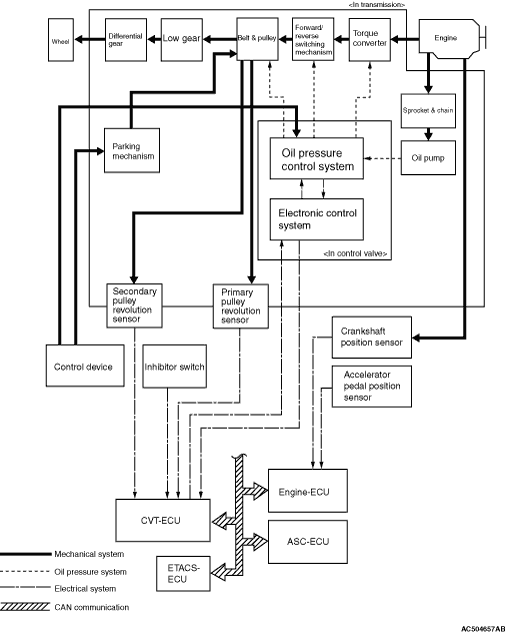

OVERVIEW
