OUTSIDE MIRROR

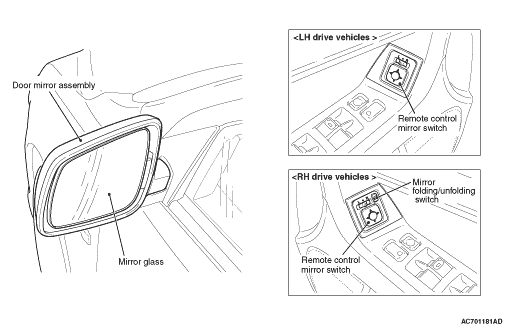

CONSTRUCTION DIAGRAM
- Electric retractable remote controlled door mirrors <Standard<RHD>: RALLIART and INTENSE, Optional<RHD>: INFORM and INVITE>.
- Heated door mirror (works with the defogger) <Standard: RALLIART and INTENSE, Optional: Other models>
- Aerodynamic door mirror shape reduces wind noises, and the door glasses and mirrors do not easily get wet while driving in a rainy day.
- One of the optional functions, such as the vehicle speed-dependent automatic unfolding function*, ignition switch-linked function* or keyless entry-linked function*, can be selected (Vehicle speed-dependent automatic unfolding function is selected as a factory setting).
note | *: Using the customisation function, the vehicle speed-dependent automatic unfolding function, ignition switch-linked function and the keyless entry-linked function can be selected (Refer to ). |
DESCRIPTION OF CONSTRUCTION AND OPERATION
Electric retractable remote controlled door mirror
note | Whether the door mirrors are at the folding or unfolding position is determined by ETACS according to the memory of the door mirror relay position (fold/unfold) operated previously. For this reason, if the mirrors are manually folded, they may not move when the folding/unfolding switch is pressed next time. |
Automatic unfolding function <Initial condition: Vehicle speed-dependent unfolding)
1. Vehicle speed-dependent unfolding
When the vehicle speed reaches 30 km/h with the ignition switch ON and the mirrors folded, ETACS turns the door mirror unfold relay (ON) for 16 seconds to unfold the door mirrors. However, the door mirrors do not return to their unfolded positions automatically if the ignition switch is turned from OFF to ON, and then the folding/unfolding switch on the remote control mirror switch is operated.
When the ignition switch is turned ON with the mirrors folded, ETACS turns the door mirror unfold relay (ON) to unfold the door mirrors. When the door is opened with the ignition switch OFF (LOCK), ETACS turns the door mirror fold relay (ON) to fold the door mirrors.
Linked with the keyless entry transmitter locking operation,* ETACS turns the door mirror fold relay ON to fold the door mirrors, and linked with the keyless entry transmitter unlocking operation, ETACS turns the door mirror unfold relay ON to unfold the door mirrors.
