GENERAL INFORMATION

FEATURES

ENHANCEMENTS IN COMFORT

• With the adoption of automatic A/C system, the inlets (fresh air/recirculation air), the vents, temperature at the vents and fan speed are automatically the controlled according to the outside temperature and cabin temperature so that the optimum air conditioning is achieved.

• By the adoption of clean air filter, the air quality in the cabin has been kept.


ENHANCEMENTS IN OPERATION PERFORMANCE

• Operability has been enhanced by the adoption of large triple dial.

• Customize function has been added for the enhanced convenience.


ENHANCEMENTS IN FUEL ECONOMY

• The high efficiency compressor with a 2-step profile and the oil separator has reduced A/C system workload, thus enhancing the fuel economy.

• The idle-up speed is controlled in two steps to secure the air cooling performance during summer and to enhance the fuel economy in the moderate seasons.

• The cooling fan control depending on the refrigerant pressure and on the vehicle speed reduce alternator load, thus enhancing the fuel economy.


ENHANCEMENT IN SAFETY

• A/C system will shut down automatically if the air bags are open.

• Crushable space has been adopted into heater unit to reduce the risk of passenger injuries if a collision occurred.


GLOBAL ENVIRONMENT PROTECTION

• New refrigerant system (HFC134a) has been adopted.

• Clean air filter media and its cover are separated to reduce waste materials, when replacing the filter.


ENHANCEMENTS IN SERVICE QUALITY

• Reduction of refrigerant gas leakage and enhancement in serviceability by incorporating condenser and receiver

• Clean air filter is installed to the backside of glove box to facilitate the filter replacement.


ENHANCEMENTS IN RESPONSIBILITY

SPECIFICATIONS

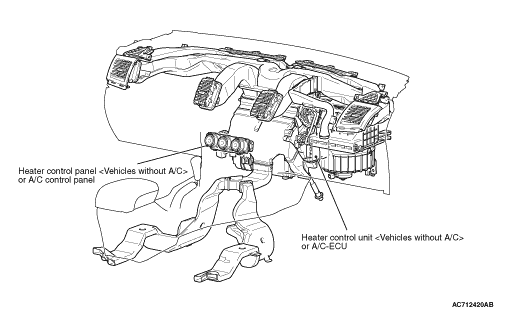

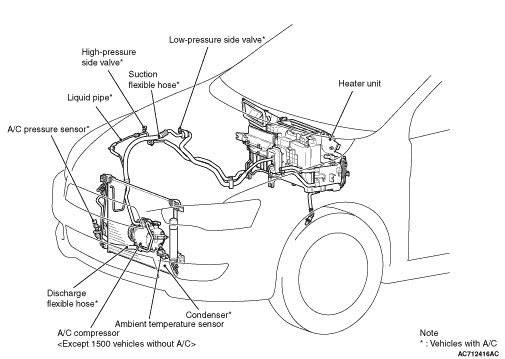

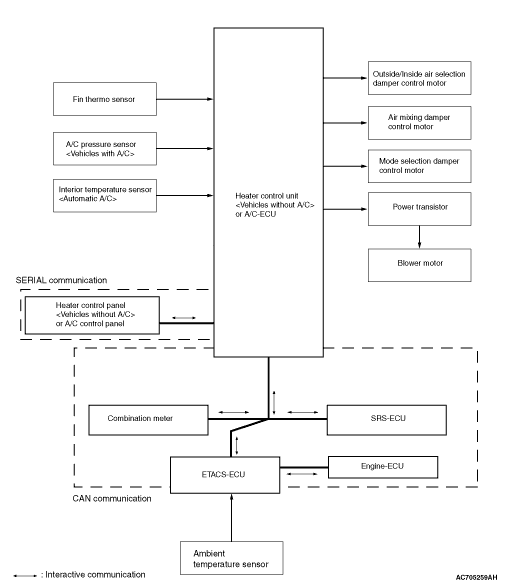

CONSTRUCTION DIAGRAM
