No.
|
Standard measurement point
|
Hole shape
|
Size mm
|
56
|

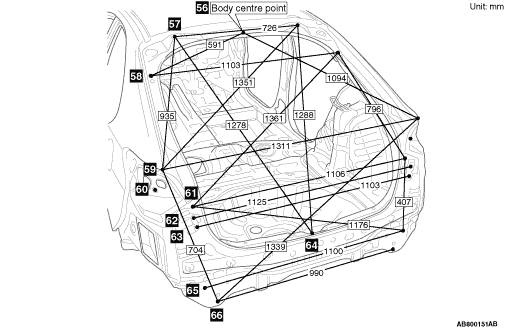

Body centre point of roof panel
|
-
|
-
|
57
|
Centre of tailgate hinge mounting hole
|
Round
|
13
|
58
|
Centre of tailgate gas spring mounting hole
|
Round
|
9.3
|

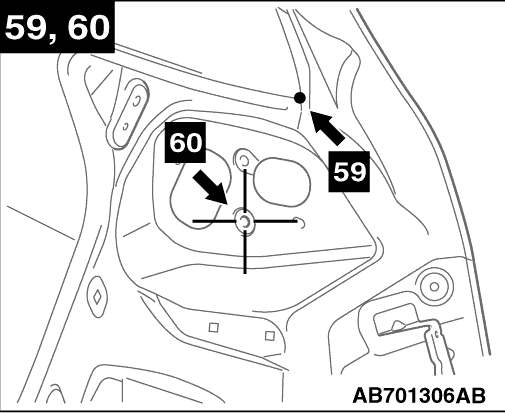

59
|
Corner of side outer panel
|
-
|
-
|
60
|
Centre of rear combination lamp mounting hole
|
Round
|
9
|

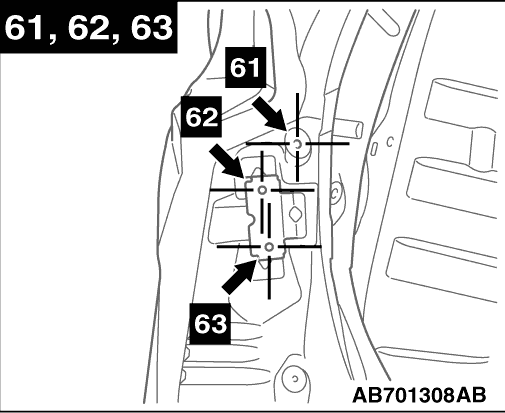

61
|
Centre of rear bumper mounting hole
|
Round
|
6.6
|
62
|
Centre of tailgate dumper mounting hole (upper)
|
Round
|
6.6
|
63
|
Centre of tailgate dumper mounting hole (lower)
|
Round
|
6.6
|

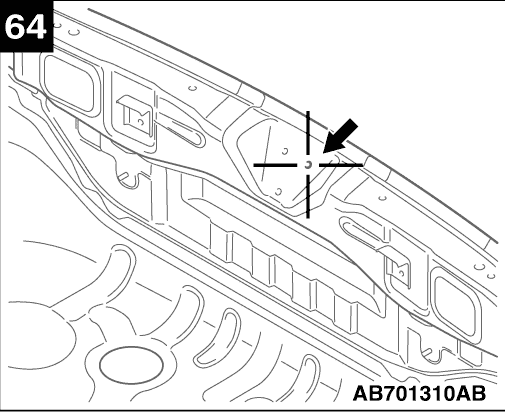

64
|
Centre of tailgate striker mounting hole
|
Round
|
14
|

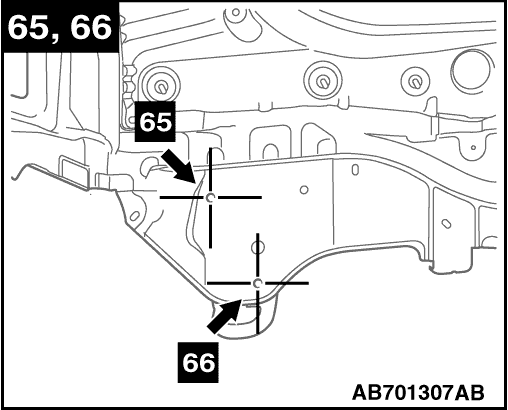

65
|
Centre of rear bumper reinforcement mounting hole (upper)
|
Round (left side), Oblong (right side)
|
15 (left side), 15×17 (right side)
|
66
|
Centre of rear bumper reinforcement mounting hole (left-lower), Centre
of rear end inner crossmember positioning hole (right-lower)
|
Round
|
15
|
