QUARTER OUTER

---

caution

When repairing the area using sound dampening foam material do not use firing tools since the sound dampening foam material may burn.

---

note Partial replacement is possible depending on the range of damage.

---

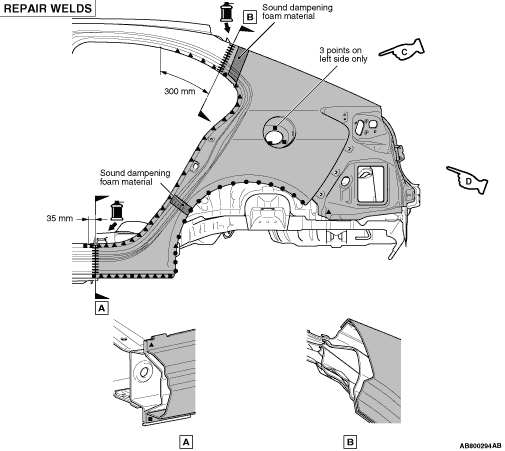

NOTE ON REPAIR WORK

---

INSTALLATION

When installing the new quarter panel outer parts, perform the following procedures.

1.Machine the body loose panel cushion (MR535301 or MR435765) for replacement as shown and apply it to the body side because the sound dampening foam material cannot be filled into the gate pillar.

2.Machine the body loose panel cushion (MR535301 or MR435765) for replacement as shown and apply it to the body side because the sound dampening foam material cannot be filled into the wheel arch.

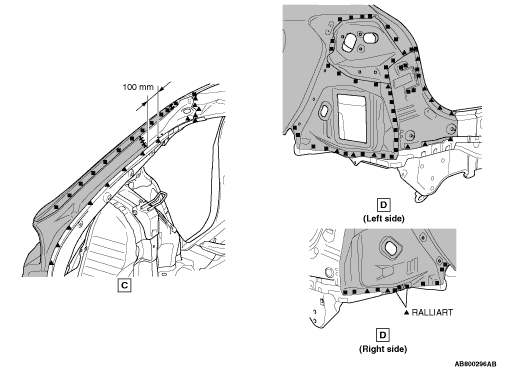

3.Apply the body sealant in advance to the areas as shown.
