REMOVAL AND INSTALLATION


Pre-removal Operation
  • Radiator condenser tank and radiator condenser tank bracket Removal (Refer to GROUP 14 - Radiator ).

 Post-installation Operation
  • Radiator condenser tank and radiator condenser tank bracket Installation (Refer to GROUP 14 - Radiator ).

  • Drive Belt Tension Check (Refer to ).

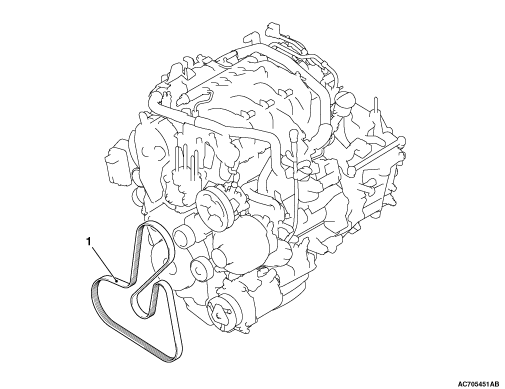

Removal step
<<A>>
 >>A<<
 1.
 Drive belt

REMOVAL SERVICE POINT

<<A>> DRIVE BELT REMOVAL
The following operations will be needed due to the introduction of the serpentine drive system with the drive belt auto-tensioner.

1.Rotate the auto-tensioner clockwise and align hole A with hole B.

2.
caution To reuse the drive belt, draw an arrow indicating the rotating direction (clockwise) on the back of the belt using chalk, etc.
Insert an L-shaped hexagon wrench, etc. into the hole to fix and then remove the drive belt.

INSTALLATION SERVICE POINT

>>A<< DRIVE BELT INSTALLATION

caution
  • Check that the notches of the notched pulley fit in with the notches of the drive belt.
  • Check that the drive belt is placed in the centre of the flat surface of the flat pulley.

Install the drive belt as shown in the figure.
