REMOVAL AND INSTALLATION <4HN>


Pre-removal operation
  • Battery and Battery Tray Removal (Refer to GROUP 54A - Battery ).
  • Air Cleaner Assembly Removal (Refer to GROUP 15 - Air Cleaner <4HN> ).

 Post-installation operation
  • Air Cleaner Assembly Installation (Refer to GROUP 15 - Air Cleaner <4HN> ).
  • Battery and Battery Tray Installation (Refer to GROUP 54A - Battery ).
  • Fuel Leak Check.

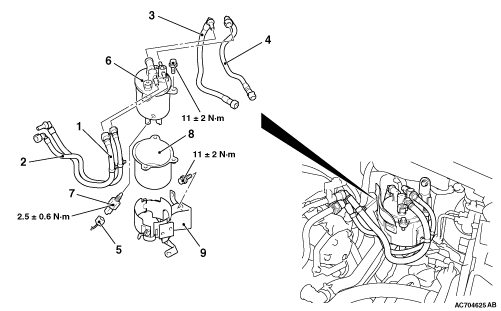

Removal steps


1.
 Fuel main tube B


2.
 Fuel return tube B


3.
 Fuel main tube A


4.
 Fuel return tube A


5.
 Fuel filter water sensor connector


6.
 Fuel filter


7.
 Fuel filter water sensor


8.
 Fuel filter bracket


9.
 Fuel filter bracket assembly
