REMOVAL AND INSTALLATION <BSY>


Pre-removal operation
  • Engine Coolant Draining <BSY> (Refer to ).
  • Air Cleaner Intake Duct Removal (Refer to GROUP 15 - Air Cleaner <BSY> ).
  • Battery and Battery Tray Removal (Refer to GROUP 54A - Battery ).

 Post-installation operation
  • Battery and Battery Tray Installation (Refer to GROUP 54A - Battery ).
  • Air Cleaner Intake Duct Installation (Refer to GROUP 15 - Air Cleaner <BSY> ).
  • Engine Coolant Refilling <BSY> (Refer to ).

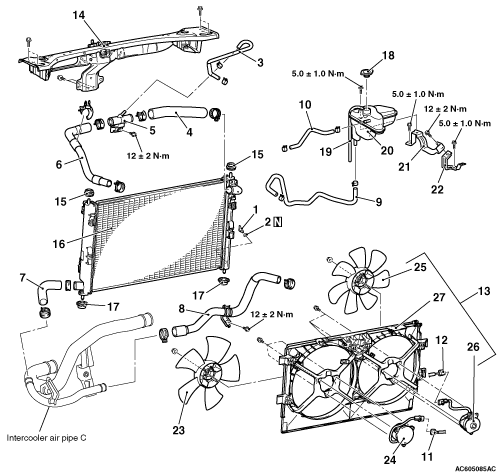

Radiator removal steps


·
 Engine room under cover front A, B (Refer to GROUP 51 - Under Cover ).


1.
 Radiator drain plug


2.
 O-ring


3.
 Bypass hose
<<A>>
 >>A<<
 4.
 Radiator upper hose


5.
 Hose upper pipe
<<A>>
 >>A<<
 6.
 Radiator upper hose
<<A>>
 >>A<<
 7.
 Radiator lower hose
<<A>>
 >>A<<
 8.
 Radiator lower hose


9.
 Bypass hose


10.
 Bypass hose


11.
 Radiator fan motor connector


12.
 Condenser fan motor connector


13.
 Fan, fan motor and fan shroud assembly


·
 Radiator grille, headlamp support upper panel cover (Refer to GROUP 51 - Radiator Grille ).


·
 Front impact sensor (Refer to GROUP 52B - Front Impact Sensor ).


·
 Hood lock release cable, hood switch (Refer to GROUP 42A - Hood ).


14.
 Headlamp support panel upper


15.
 Support upper insulator


16.
 Radiator assembly


17.
 Support lower insulator


18.
 Radiator condenser tank cap


19.
 Radiator condenser tank hose


20.
 Radiator condenser tank


21.
 Radiator condenser tank bracket


22.
 Radiator condenser tank bracket



Fan shroud removal steps


3.
 Bypass hose
<<A>>
 >>A<<
 4.
 Radiator upper hose


5.
 Hose upper pipe
<<A>>
 >>A<<
 6.
 Radiator upper hose
<<A>>
 >>A<<
 7.
 Radiator lower hose
<<A>>
 >>A<<
 8.
 Radiator lower hose


9.
 Bypass hose


10.
 Bypass hose


11.
 Radiator fan motor connector


12.
 Condenser fan motor connector


13.
 Fan, fan motor, fan shroud assembly


23.
 Radiator fan


24.
 Radiator fan motor


25.
 Condenser fan


26.
 Condenser fan motor


27.
 Fan shroud

REMOVAL SERVICE POINT

<<A>> RADIATOR UPPER HOSE/RADIATOR LOWER HOSE REMOVAL

Make mating marks on the radiator hose and the hose clamp. Disconnect the radiator hose.

INSTALLATION SERVICE POINT

>>A<< RADIATOR LOWER HOSE/RADIATOR UPPER HOSE INSTALLATION

1.Insert the hose to the protrusions at both radiator and engine sides.
2.Align the mating marks on the radiator hose and hose clamp, and then connect the radiator hose.
