REMOVAL AND INSTALLATION <6B3>


Pre-removal operation
  • Engine Coolant Draining <4B1, 6B3> (Refer to ).
  • Air Cleaner Assembly Removal (Refer to GROUP 15 - Air Cleaner <6B3> ).
  • Battery and Battery Tray Removal (Refer to GROUP 54A - Battery ).

 Post-installation operation
  • Battery and Battery Tray Installation (Refer to GROUP 54A - Battery ).
  • Air Cleaner Assembly Installation (Refer to GROUP 15 - Air Cleaner <6B3> ).
  • Engine Coolant Refilling <4B1, 6B3> (Refer to ).

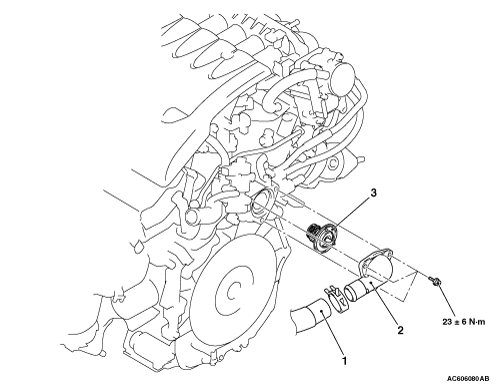

Removal steps
<<A>>
 >>B<<
 1.
 Radiator lower hose connection


2.
 Water inlet fitting

>>A<<
 3.
 Thermostat

REMOVAL SERVICE POINT

<<A>> RADIATOR LOWER HOSE DISCONNECTION

Make mating marks on the radiator lower hose and the hose clamp. Disconnect the radiator lower hose.

INSTALLATION SERVICE POINTS

>>A<< THERMOSTAT INSTALLATION
caution Avoid adhesion of grease to the rubber ring of the thermostat. If the rubber ring is damaged, replace the thermostat.

Install the thermostat with care to avoid peeling or damage to the rubber ring. When installing the thermostat, face the jiggle valve of the thermostat upward.

>>B<< RADIATOR LOWER HOSE INSTALLATION

1.Insert the radiator lower hose to the projection of the water inlet fitting.
2.Align the mating marks on the radiator lower hose and hose clamp, and then connect the radiator lower hose.
