REMOVAL AND INSTALLATION <BSY>



Pre-removal and Post-installation OperationBattery and Battery Tray Removal and Installation (Refer to GROUP 54A - Battery )

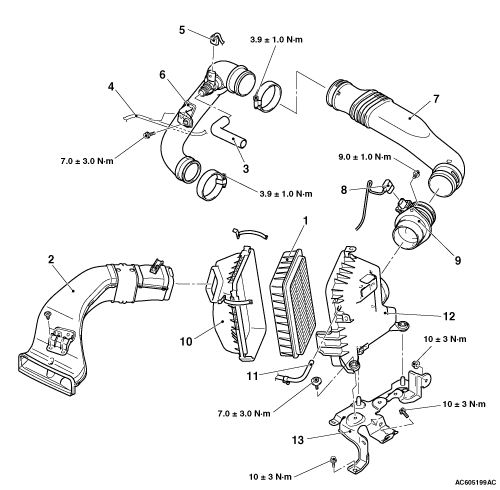

Removal steps


1.
Air cleaner element


2.
Air cleaner intake duct


·
Engine cover (Refer to GROUP 11A - Engine Assembly ).


·
Strut tower bar (Refer to GROUP 42A - Strut Tower Bar ).


3.
Breather hose connection


4.
Vacuum hose connection


5.
Blow-by heater connector connection <Vehicles for cold climates>


6.
Air cleaner intake hose


7.
Air cleaner intake pipe


8.
Air flow sensor connector connection


9.
Air flow sensor


10.
Air cleaner cover


11.
Vacuum hose connection


12.
Air cleaner body


·
Engine-ECU (Refer to GROUP 13A - Engine-ECU ).


13.
Air cleaner bracket
