REMOVAL AND INSTALLATION <6B3>

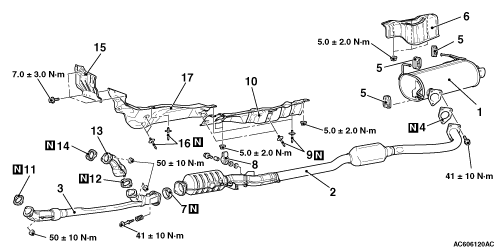

Exhaust main muffler and rear floor panel heat protector removal steps


1.
Exhaust main muffler


4.
Exhaust pipe gasket


5.
Exhaust muffler hanger


6.
Rear floor panel heat protector



Centre exhaust pipe and front floor panel rear heat protector removal steps


2.
Centre exhaust pipe


4.
Exhaust pipe gasket


7.
Seal ring


8.
Exhaust muffler hanger
<<A>>
>>A<<
9.
Rivet


10.
Front floor rear panel heat protector



Front exhaust pipe and front floor panel front heat protector removal steps


3.
Front exhaust pipe


7.
Seal ring


11.
Exhaust pipe gasket


12.
Exhaust pipe gasket


13.
Front exhaust pipe (RH)


14.
Exhaust pipe gasket


15.
Dash panel heat protector
<<A>>
>>A<<
16.
Rivet


17.
Front floor front panel heat protector

REMOVAL SERVICE POINT



<<A>> RIVET REMOVAL


caution Be careful not to damage the heat protector with the drill.

Use a drill (6.0 mm) to make a hole in the rivet to break it, and then remove the rivet.

INSTALLATION SERVICE POINT



>>A<< RIVET INSTALLATION



Use a rivet tool shown in the illustration to connect the parts with rivets by the following procedures.
1.Insert the rivet into a corresponding location.
2.Set the rivet tool at a portion A of rivet.
3.While pushing the flange surface of the rivet onto parts to be fixed with the rivet tool, press the handle of the tool.
4.Thin part of portion A of the rivet will be cut off and the parts is fixed in position.
